Description

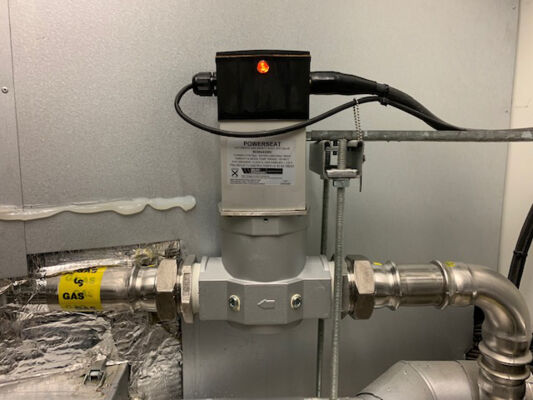

The Powerseat® electro-hydraulic gas shut-off valve allows the control and safety shut-off of low pressure combustible gases in pipes from 65mm to 250mm, whilst focusing on being energy efficient and environmentally friendly. The Powerseat Eco shut-off valve is kept open by a hydraulic pump wh ere hydraulic fluid is forced into a cylinder driving the valve open.
UK STANDARD STOCK
Technical Features
Part no.
| Type | Product Code | Size | Power | Description |
| Powerseat® Eco Flanged | PE6685FL4110V | 65mm | 110V | Valve and Actuator |
| Powerseat® Eco Flanged | PE6686FL4110V | 80mm | 110V | Valve and Actuator |
| Powerseat® Eco Flanged | PE6687FL4110V | 100mm | 110V | Valve and Actuator |
| Powerseat® Eco Flanged | PE6689FL4110V | 150mm | 110V | Valve and Actuator |
| Powerseat® Eco Flanged | BC66810FL4110V | 200mm | 110V | Valve and Actuator |
| Powerseat® Eco Flanged | BC66811FL4110V | 250mm | 110V | Valve and Actuator |
| Powerseat® Eco Flanged | PE6685FL4230V | 65mm | 230V | Valve and Actuator |
| Powerseat® Eco Flanged | PE6686FL4230V | 80mm | 230V | Valve and Actuator |
| Powerseat® Eco Flanged | PE6687FL4230V | 100mm | 230V | Valve and Actuator |
| Powerseat® Eco Flanged | PE6689FL4230V | 150mm | 230V | Valve and Actuator |
| Powerseat® Eco Flanged | BC66810FL4230V | 200mm | 230V | Valve and Actuator |
| Powerseat® Eco Flanged | BC66811FL4230V | 250mm | 230V | Valve and Actuator |
Spare Parts
| Type | Product Code | Size | Power | Description |
| Powerseat® Eco Flanged | PE668HS110V | 65mm | 110V | Actuator Only For PE6685FL4110V |
| Powerseat® Eco Flanged | PE668HS110V | 80mm | 110V | Actuator Only For PE6686FL4110V |
| Powerseat® Eco Flanged | PE6687S110V | 100mm | 110V | Actuator Only For PE6687FL4110V |
| Powerseat® Eco Flanged | PE6689S110V | 150mm | 110V | Actuator Only For PE6689FL4110V |
| Powerseat® Eco Flanged | BC66810S110V | 200mm | 110V | Actuator Only For BC66810FL4110V |
| Powerseat® Eco Flanged | BC66811S110V | 250mm | 110V | Actuator Only For BC66811FL4110V |
| Powerseat® Eco Flanged | PE668HS230V | 65mm | 230V | Actuator Only For PE6685FL4230V |
| Powerseat® Eco Flanged | PE668HS230V | 80mm | 230V | Actuator Only For PE6686FL4230V |
| Powerseat® Eco Flanged | PE6687S230V | 100mm | 230V | Actuator Only For PE6687FL4230V |
| Powerseat® Eco Flanged | PE6689S230V | 150mm | 230V | Actuator Only For PE6689FL4230V |
| Powerseat® Eco Flanged | BC66810S230V | 200mm | 230V | Actuator Only For BC66810FL4230V |
| Powerseat® Eco Flanged | BC66811S230V | 250mm | 230V | Actuator Only For BC66811FL4230V |
