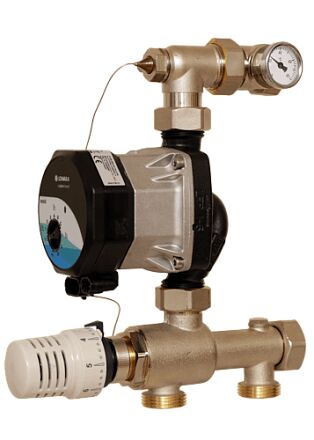

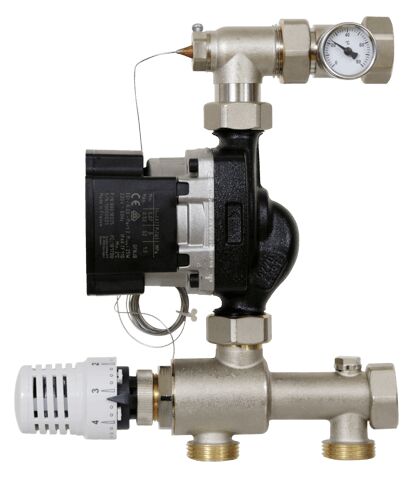

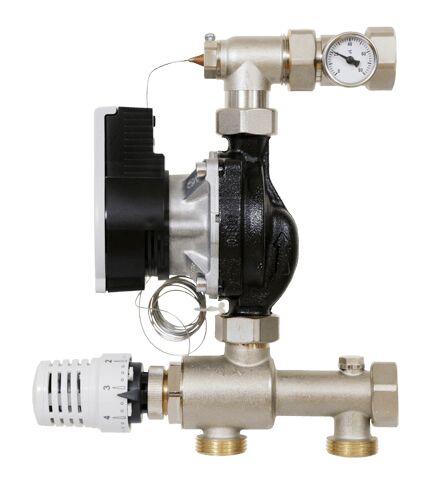

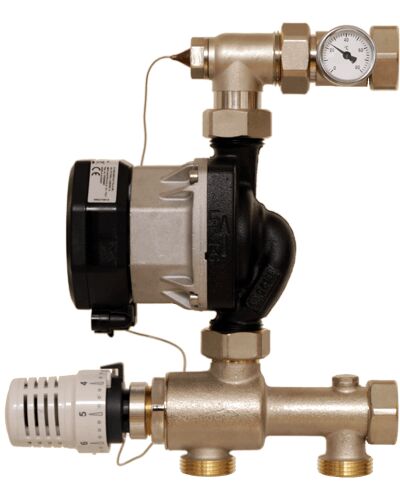

ISOMIX-F ready-to-mount control unit
×
![]()
ISOMIX-F ready-to-mount control unit
ISOMIX-F ready-to-mount control unit
Description
Ready-to-mount, compact control unit to control supply temperature in radiant panel heating systems up to 14 kW heat demand. Supply temperature setting range: 20–70 °C, temperature limiting and locking facility on thermostatic head. Pre-wired pump and temperature limiter. Can be mounted on the right or left side of the manifold. Suitable for all Watts 1" M heating circuit manifolds. Nickel plated. Insulation box is available as an accessory.
- max. operating pressure 10 bar
- max. ambient temperature 40 °C
- max. operating temperature 80 °C
- Media Water/water-glycol mixtures according to VDI 2035/ÖNORM 5195
- Connections to the pipe network 1 "AG primary (heat generator), 1 "Fl. secondary (heat distribution)
- Kvs-value 3.55 m³/h
- Differential pressure max. 500 mbar
Technical Features
Part no.
| Type | Part no. WIDE | |

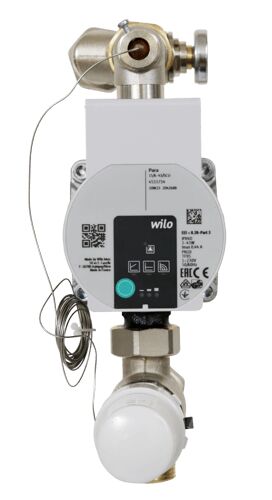

| ISOMIX-F | Wilo Para SCU/6 | 10084161 |

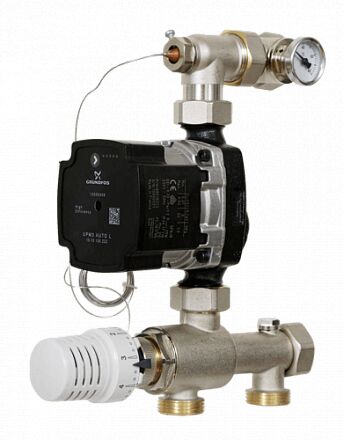

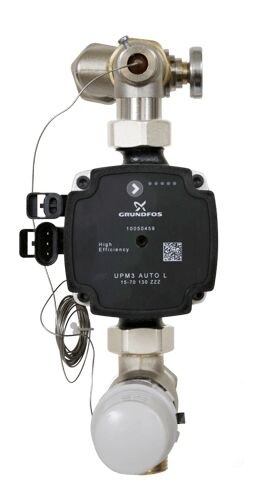

| ISOMIX-F | Grundfos UPM3A7 | 10084635 |

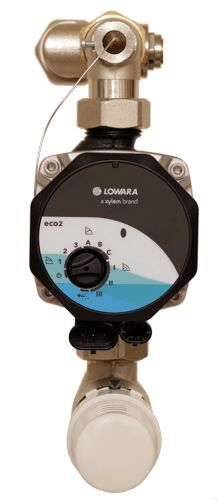

| ISOMIX-F | Lowara Eco2/6 | 10087333 |
| ISOMIX-F | CalioSI/7 | 10086195 |
| ISOMIX-F | without pump, without temperatur limiter WTC | 10082500 |
| Insulation Box | Insulation Isomix-F(HC) | 10085876 |
| ISOMIX-F 1) | Wilo Yonos Para 15/6 | 10070291 |
