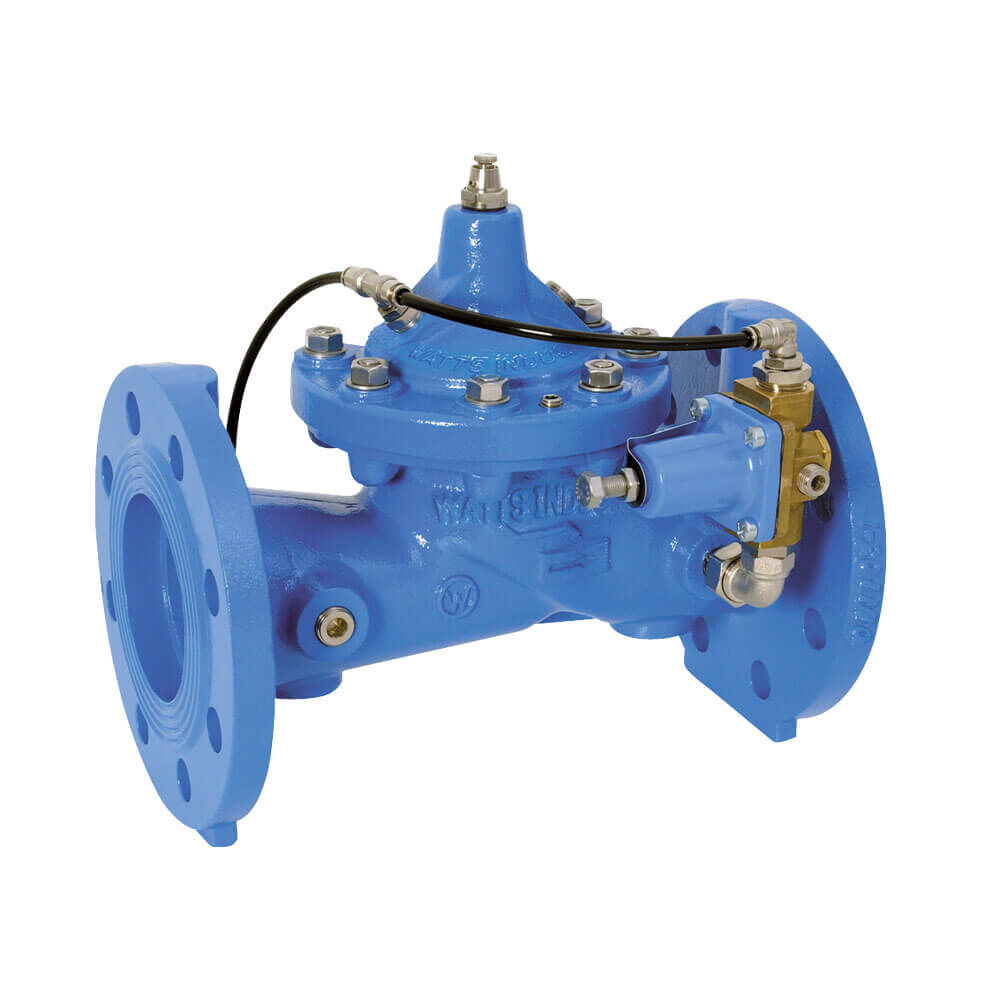

PR500 Pilot Operated Pressure Reducing Valve

PR500 Pilot Operated Pressure Reducing Valve
Jump to section
Description Technical Features Part no. Downloads Case Studies Related products
Ask a question

Description

Pressure reducing valve pilot operated. Designed to reduce a higher upstream pressure to a constant lower downstream pressure. Easy to install and adjustable outlet pressure. Ductil Iron Body GGG40. Internal and External Epoxy Finish. Diaphragm: NBR. Max working temperature: + 70°C. Nominal Pressure: PN 16, 25. Adjustment range of pilot: Standard: 1,4 - 12 bar. On Request: 0,1 - 2 Bar, 7 - 21 Bar. Fluid: Water.

UK STANDARD STOCK

Technical Features

Part no.

Type Product Code Size Flange
PR500  149B050244  DN50  PN16
PR500  148B050245  DN65  PN16
PR500  149B049836  DN80  PN16
PR500  149B046159  DN100  PN16
PR500  149B040204  DN125  PN16
PR500  149B050247  DN150  PN16
PR500  149B042361  DN200  PN10
PR500  149B043040  DN250  PN10
