Wired Water Heating Controller WFC-03 H+ with pump output, 230V actuators, 24V thermostats
WATTS VISION 2.0
Description

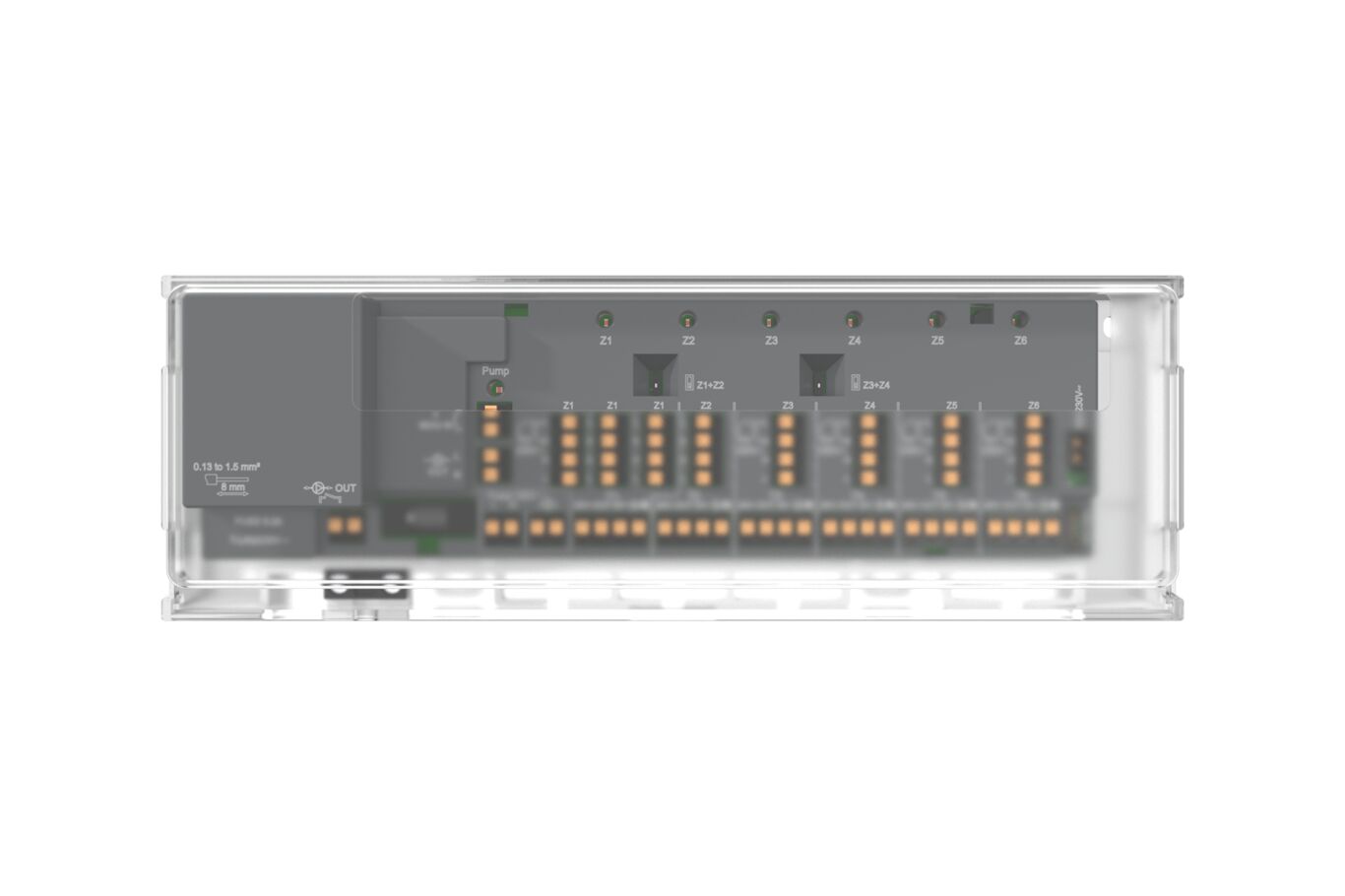

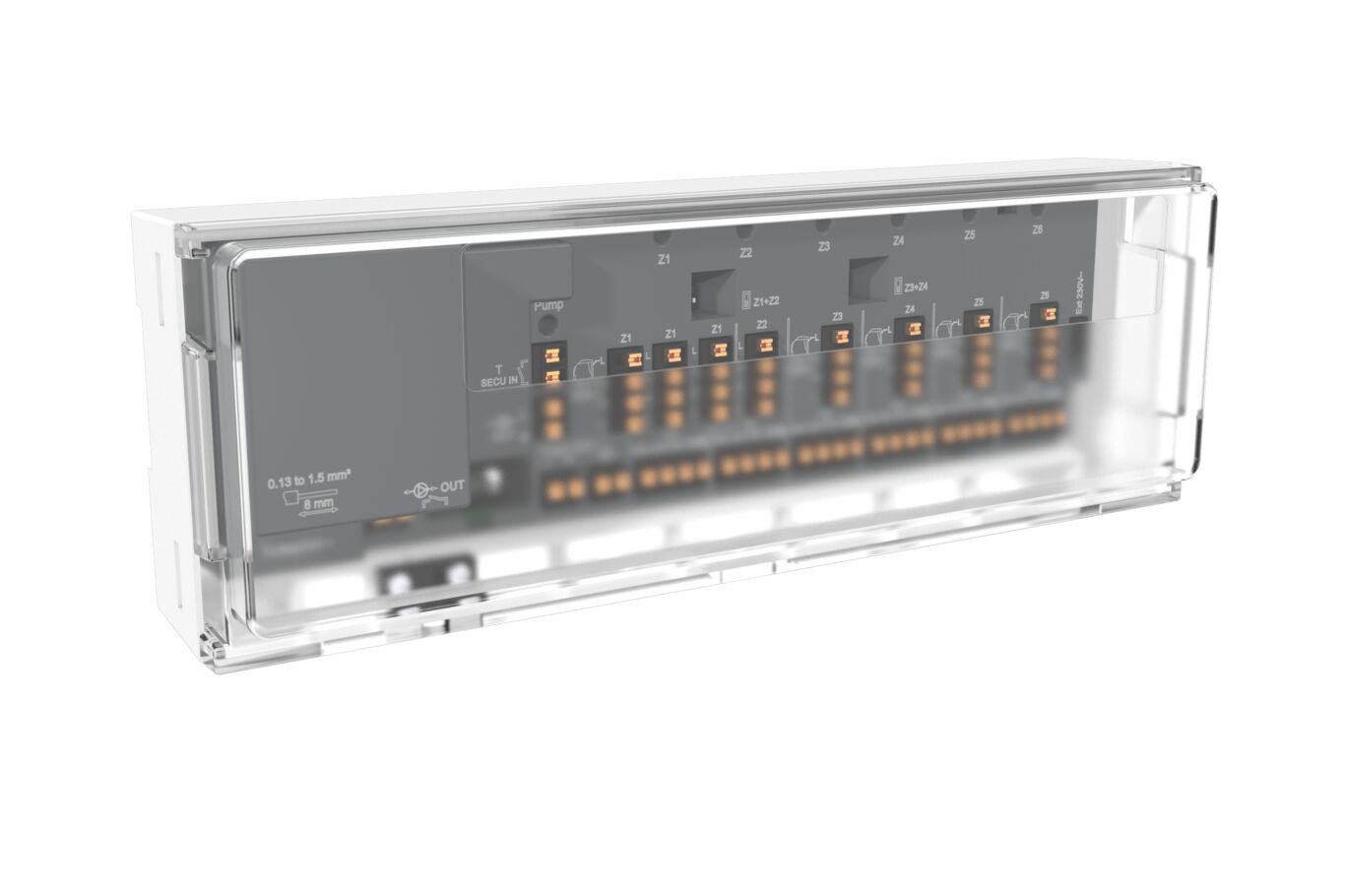

The Connecting box WFC-03 H+ is especially designed to control your Under Floor Heating system. It allows easy and quick connection of 24V thermostats and 230V actuators.
It has integrated multiple functions:

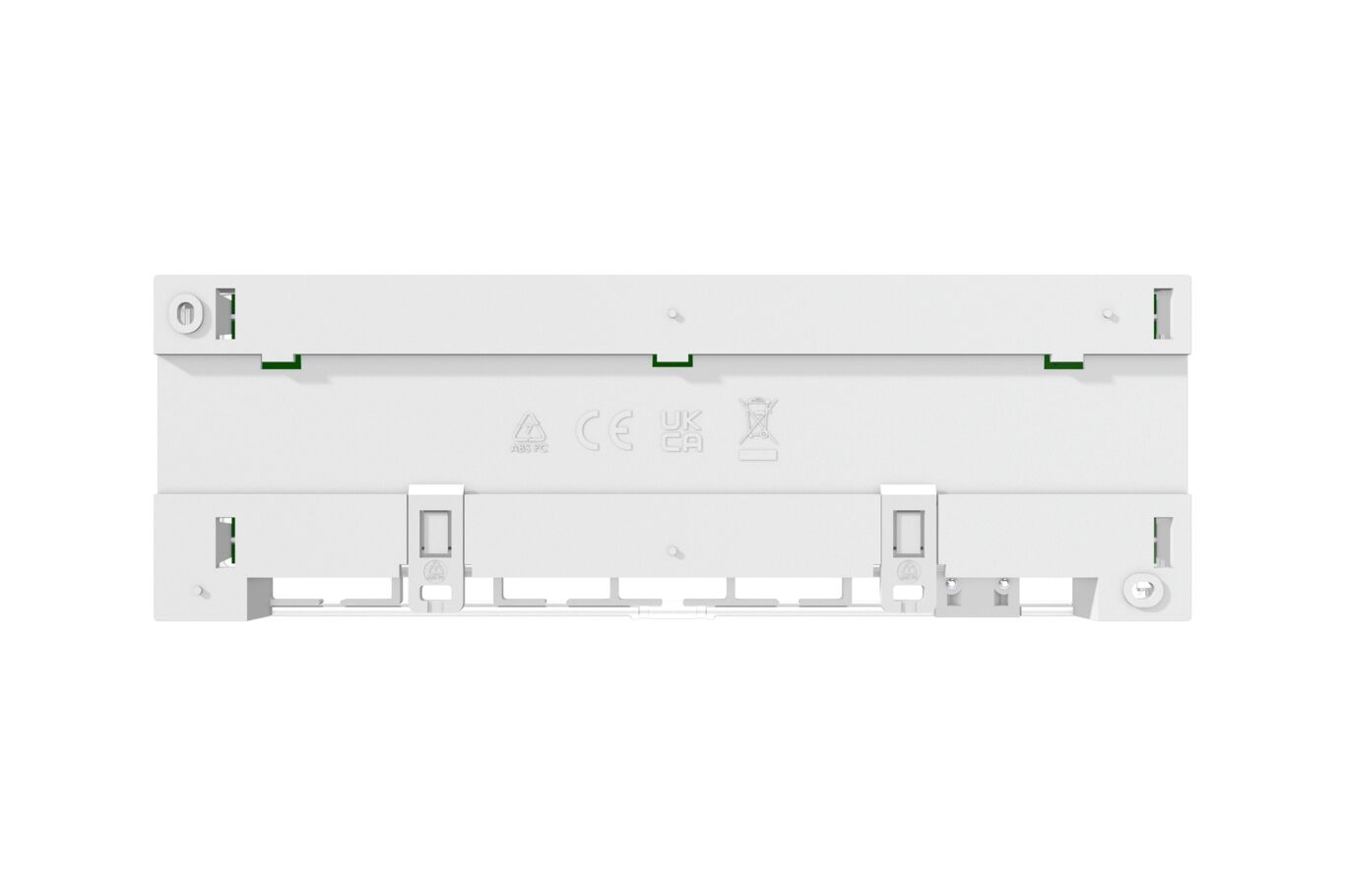

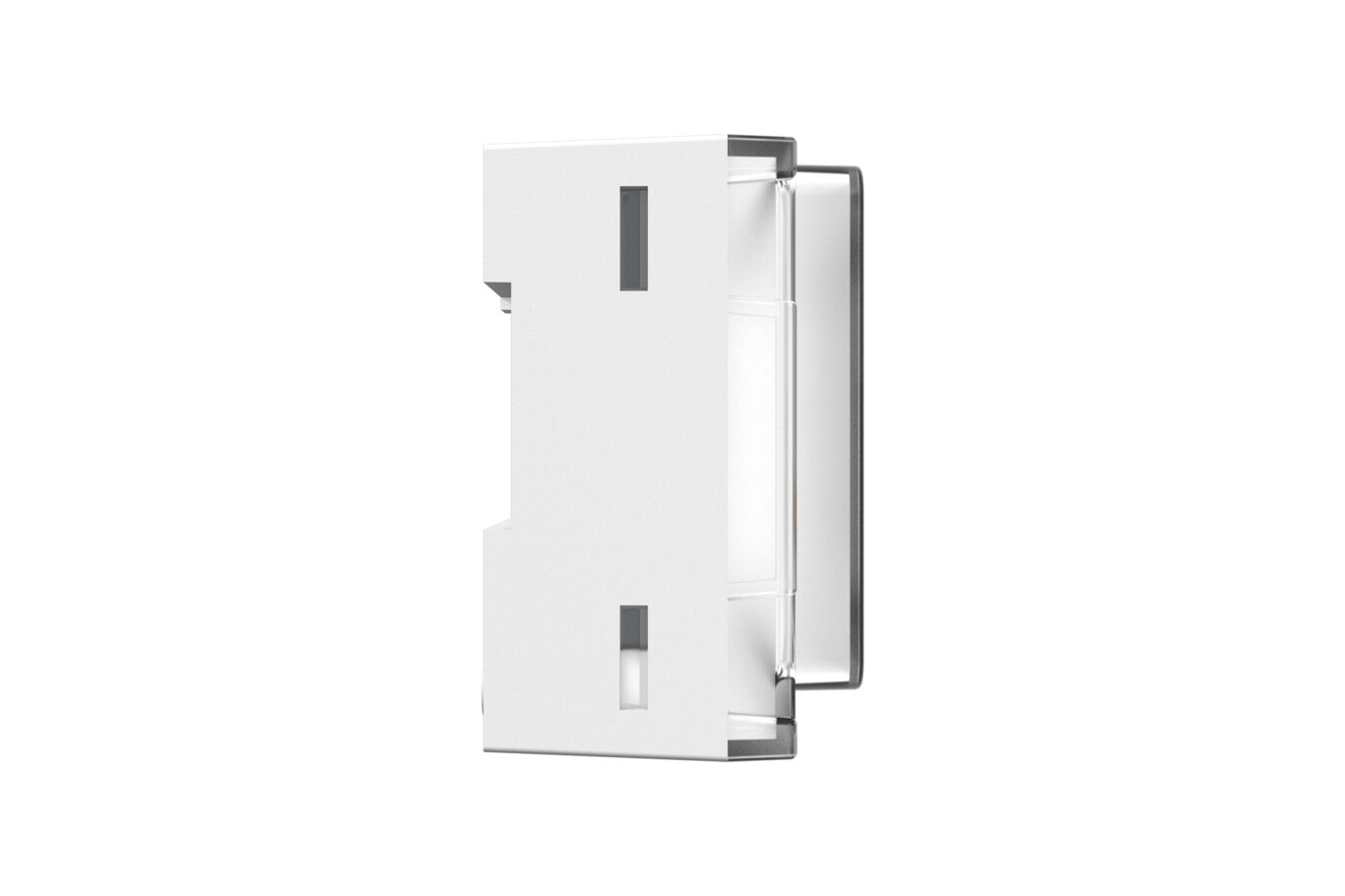

• Wall mounted or mounter on DIN Rail
• Push-in cable connections with strain relief
• Pump and boiler outputs (230V and volt free signal)
• Overheating security
• Easy merging of the zones on the same thermostat (DIP switches)
Technical Features
• Maximal humidity percentage: 85% at 20°C (68°F)
• Electrical protection: Class II with functional earth
• IP Protection: IP30
• Shipping and storage temperature: -10 °C à 50 °C (14 °F à 122 °F)
• Power supply: 230 VAC ± 10% 50Hz
• Output maximum load (2 outputs): Relay : 5A
• Actuators: 230V NC up to 2.5W
• 24V Thermostats (Up to 6 zones)
• Compatibility WT-A03; WT-A03 HC; WT-D03; WT-DP03
