Automatic and manual air vent valve DUO, DUO/R
×
![]()
Automatic and manual air vent valve DUO, DUO/R
Automatic and manual air vent valve DUO, DUO/R
Leírás

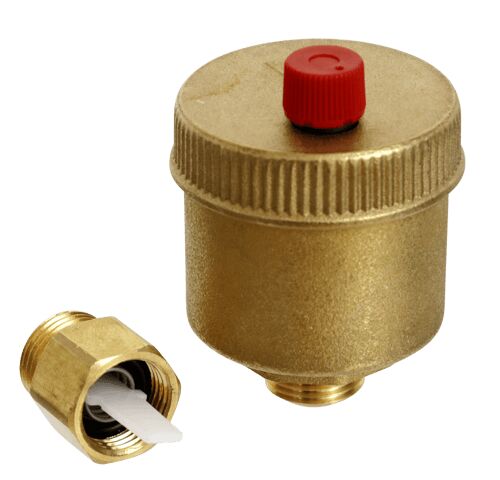

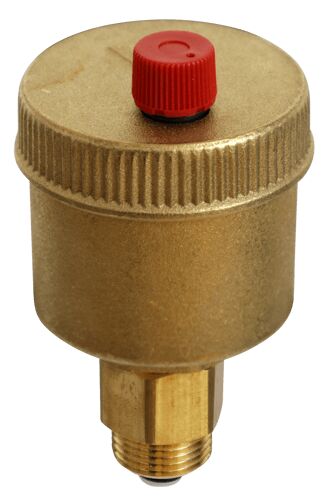

DUOVENT Automatic and manual air vent valve with removable cover for inspection. Body and cover in brass CW617N. Corrosion-resistant polyethylene float. Also suitable for water containing additive (glycol up to 50%). DUO/R: air vent valve like DUO but complete with automatic shut-off valve RIA.
- PN 12.
- Maximum working pressure: 12 bar.
- Maximum working temperature: 115°C.
- Automatic venting capacity at 3 bar: 20 litres/min.
- Manual venting capacity at 3 bar: 100 litres/min.
