Giunto antivibrante ZKB

giunto-antivibrante-zkb

Giunto antivibrante ZKB

Descrizione

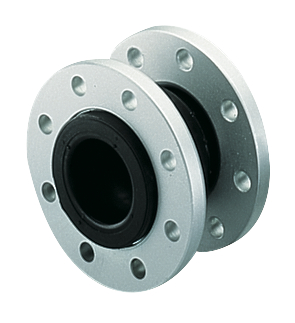

Giunto antivibrante con flange in acciaio galvanizzato. A richiesta: flange inox, flange PN 25 e anello anti-vuoto.

Cod. art.

Codice	Prodotto	DN mm	PFA ACQUA (Bar)	PN	Pz. Conf.	Imballo
149B12552C	EPDM	32	16	10/16	1	1
149B12553C	EPDM	40	16	10/16	1	1
149B12554C	EPDM	50	16	10/16	1	1
149B12555C	EPDM	65	16	10/16	1	1
149B12556C	EPDM	80	16	10/16	1	1
149B12557C	EPDM	100	16	10/16	1	1
149B12558C	EPDM	125	16	10/16	1	1
149B12559C	EPDM	150	16	10/16	1	1
149B12560C	EPDM	200	10	10	1	1
149B12561C	EPDM	250	10	10	1	1
149B12562C	EPDM	300	10	10	1	1
149B12563C	EPDM	350	8	10	1	1
149B12564C	EPDM	400	8	10	1	1
149B12565C	EPDM	450	8	10	1	1
149B12566C	EPDM	500	8	10	1	1
149B12567C	EPDM	600	8	10	1	1

149B12552N	NBR	32	16	10/16	1	1
149B12553N	NBR	40	16	10/16	1	1
149B12554N	NBR	50	16	10/16	1	1
149B12555N	NBR	65	16	10/16	1	1
149B12556N	NBR	80	16	10/16	1	1
149B12557N	NBR	100	16	10/16	1	1
149B12558N	NBR	125	16	10/16	1	1
149B12559N	NBR	150	16	10/16	1	1
149B12560N	NBR	200	10	10	1	1
149B12561N	NBR	250	10	10	1	1
149B12562N	NBR	300	10	10	1	1
149B12563N	NBR	350	8	10	1	1
149B12564N	NBR	400	8	10	1	1
149B12565N	NBR	450	8	10	1	1
149B12566N	NBR	500	8	10	1	1
149B12567N	NBR	600	8	10	1	1

149B054065	EPDM	200	16	16	1	1
149B054066	EPDM	250	16	16	1	1
149B054067	EPDM	300	16	16	1	1
149B054068	EPDM	350	8	16	1	1
149B054069	EPDM	400	8	16	1	1
149B054070	EPDM	450	8	16	1	1
149B054080	EPDM	500	8	16	1	1
149B054071	EPDM	600	8	16	1	1

149B054074	NBR	200	16	16	1	1
149B054072	NBR	250	16	16	1	1
149B054073	NBR	300	16	16	1	1
149B054075	NBR	350	8	16	1	1
149B054076	NBR	400	8	16	1	1
149B054077	NBR	450	8	16	1	1
149B054078	NBR	500	8	16	1	1
149B054079	NBR	600	8	16	1	1

149B12568C	EPDM	20	3/4	10	1	1
149B12569C	EPDM	25	1	10	1	1
149B12570C	EPDM	32	1 1/4	10	1	1
149B12571C	EPDM	40	1 1/2	10	1	1
149B12572C	EPDM	50	2	10	1	1
149B12573C	EPDM	65	2 1/2	10	1	1
149B12574C	EPDM	80	3	10	1	1

149B12568N	NBR	20	3/4	10	1	1
149B12569N	NBR	25	1	10	1	1
149B12570N	NBR	32	1 1/4	10	1	1
149B12571N	NBR	40	1 1/2	10	1	1
149B12572N	NBR	50	2	10	1	1
149B12573N	NBR	65	2 1/2	10	1	1
149B12574N	NBR	80	3	10	1	1
