Controller CLIMATIC CONTROL for heating and cooling systems (phased out)
Beschrijving

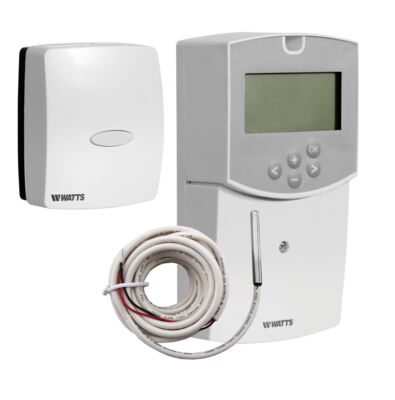

Digital climatic controller for heating only and heating/cooling systems with outdoor air temperature compensation. Recommended for flow temperature control with mixing valve with 230 VAC 3-point actuator. Weekly programming, 9 pre-set programmes and 4 custom programmes, controlled on basis of outdoor temperature, outdoor temperature and water temperature display, maximum and minimum temperature limit, pump control, possible to connect a room thermostat. Predisposed for the installation of an antenna for use with RF (antenna not included). Ideal for controlling radiant panel heating/cooling systems. Kit includes: - climatic control unit; - outdoor temperature probe with 2 m cable NTC 10 KΩ; - flow water temperature probe NTC 10 KΩ (1/8” M straight); Option for WSENS return water temperature probe.
- Flow water temperature 0÷100°C
- Power supply 230 VAC 50 Hz
- Pump control: 5A 250 VAC relay
- Heating generator control: 5A free contact relay
- Air conditioning unit control: 5A 230 VAC relay
- Mixing valve control: 3-point modulating (2 Triacs 75W Max 230 VAC).
