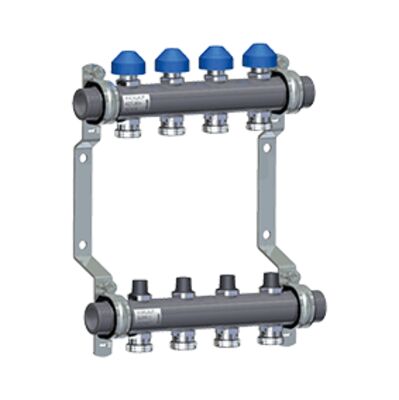

Stainless Steel Manifold HKV2010-VA for Underfloor Heating
×
![]()
Stainless Steel Manifold HKV2010-VA for Underfloor Heating
Stainless Steel Manifold HKV2010-VA for Underfloor Heating
Description
Stainless steel round pipe heating circuit manifold according to EN 1264-4. Flat sealing connections 1”M. Low installation depth. Connection nipple G3/4” with Eurocone, 50 mm distance. Function and pressure tested. SUPPLY(bottom): Fine-control and shut-off valve. RETURN (top): Control and shut-off valve with adaption M30 x 1,5.
- Max. admissible operation temperature: +90 °C
- Min. admissible operation temperature: -10 °C
- Max. admissible operation pressure: 10 bar
- Valves and fittings: Brass CW614N /CW617N
- Manifold Pipe: stainless steel 1.4301
- O-Rings: EPDM Elastomers
- Washers: EPDM Elastomers or Aramid AFM34
- Ball seat: PTFE
- Polymers: Impact- and temperature resistant
- Brackets: Steel, galvanized
