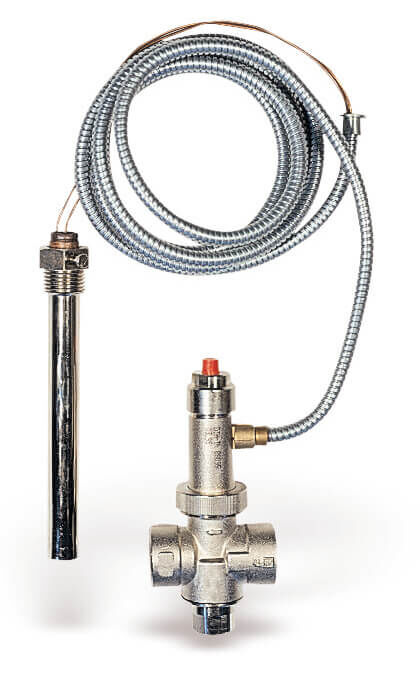

Thermal safety drain valve STS
×
![]()
Thermal safety drain valve STS
Thermal safety drain valve STS
Description
Thermal safety drain valve for non atomized, solid fuel boilers with double safety. Compliant with PED Directive 2014/68/EU Identification number CE0425.
- Nickel-plated brass CW617N body.
- Immersion probe with 145 mm sheath and 1/2” M connection.
- Max. drain capacity: 6500 litres/h at 8 bar.
- Max. operating pressure: 10 bar.
- Set temperature : 97 °C. Max. drain capacity temperature : 107 °C.
