Check-valve W.F. Compact, length 58 mm

Check-valve W.F. Compact, length 58 mm
Przejdź do Sekcji
Opis Parametry techniczne Nr kat. Pobierz Projekty Powiązane produkty
Zadaj pytanie

Opis

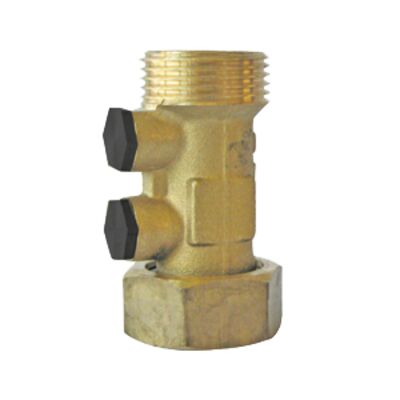

Controllable anti-pollution check valve, EA type. For all drinking water networks: building, water distribution, pumping. Model with swivel nut for fitting directly after the water meter. Quiet operation, low pressure drops. Total tightness even with very low counter-pressure. Brass body with two F 1/8” (5x10) bosses with two brass plugs or captive drain cocks. POM (polyacetal) disc, stainless steel spring, NBR (nitrile) seal. Very high flow rates, fitting in all positions. Same features as the WF model except for length of 58 mm and 1/8" (5x10) pressure test points. Supplied with brass plugs or captive drain cocks.

Max. temperature: 90°C.
Max. pressure: 10 bar.
Approval: NF EN 13959, complies with EN 1717.
