DR96M - Modulating Domoradiant
Opis

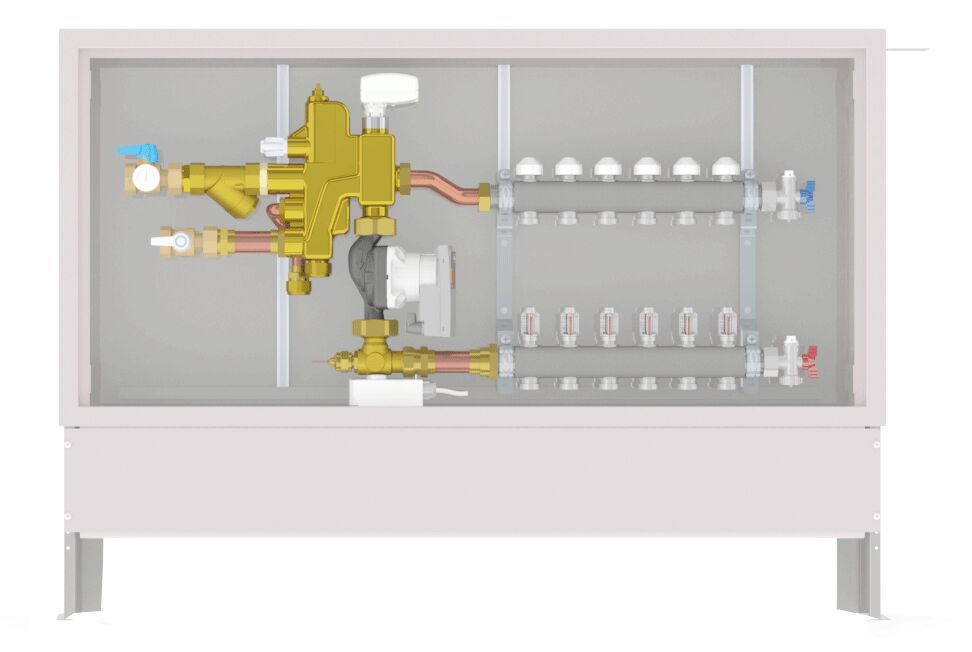

Pre-assembled module with modulating control and unit for distribution and pumping of hot fluid at low temperature or chilled fluid for radiant panel heating/cooling systems. Complete with contact safety thermostat and thermal insulation. 230V 3-point actuator, stainless steel distribution manifolds, compatible with 22C, 22CX, and 26LC Series.
6-way multi-function valve with:
-
3-way valve with bleeding from the primary circuit up to 96%;
-
electronic actuator (item EMUJC-230) with supply voltage of 230V and 3-point control signal;
-
built-in low-loss header;
-
balancing valve
-
flow meter (5-50 l/min);
-
auxiliary connections for additional and/or dehumidification terminal units, if applicable;
-
primary circuit temperature control thermometer;
-
shut-off valves;
-
brass Y-strainer.
Pumping unit consisting of a variable-speed electric pump in accordance with the Energy-related Products (ErP) Directive (2009/125/EC)
Distribution unit consisting of:
-
HKV2013 Series stainless steel DN 1” manifolds and Eurocone 3/4”M side outlets, complete with flow meters on the flow side and control valves on the return side;
-
fitting for manifolds, complete with thermometer, float-type air vent valve and water drain. Integrated control system (optional and supplied separately) with:
-
ON/OFF electrothermal actuators (22C, 22CX, and 26LC Series);
-
4/6-zone modular control boxes (WFHC, BT02 Series), which can be connected with a weekly programming clock for 2 heating zones;
-
electronic room thermostats (WFHT, BT, BT02 Series), also available in wireless version. Metal housing and white-painted frame and door.
RCL-HC Series climatic control system (optional, supplied separately) for heating and cooling.
