MINIMIX
Opis

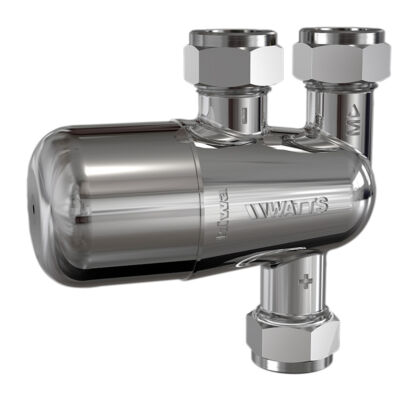

MINIMIXing is used for point of use control requiring an aesthetic environment. Design to supply immediate tempered water not exceeding a temperature set. MINIMIXing is aimed for communities or in bathrooms installations such as : Hotels, Hospitals, Schools, Nursing homes, Restaurants, Laboratories, Motorway services, etc. Main advantages of MINIMIXing - High security level against scalding - Immediate tempered water provides savings - Protection against Legionella bacteria - Quick and easy installation and maintenance Main features of MINIMIXing - Extra compact size - Aesthetic design with brass body chrome polished - Easily installed directly on isolating wall-mounted tap - Temperature set secured by hexagonal socket screw - Easy to replace modular adjustment mechanism (cartridge) - Graduated ring inside the body for temperature control by the installer manually - Equipped with 2 approved Check valves (KIWA, WRC, DVGW,BELGAQUA, NF...). - Incorporated stainless steel filter , integrated in the thermostatic cartridge - New cartridge can be set up in old design - Outstanding reliability. - Compliance with standard EN1111. - KIWA, BELGAQUA approvals Specification text MINIMIXing [ /upload/medialibrary/ccc/Specifier-text-_EN-MINIMIX-ing-.docx ] - Setting range: 30 to 70°C - Maximum working pressure 10bar - Maximum hot water : 85°C - Flow rate 28L/min under 3 bar
