DOMOCAL PENSILE con dima chiusa
Описание

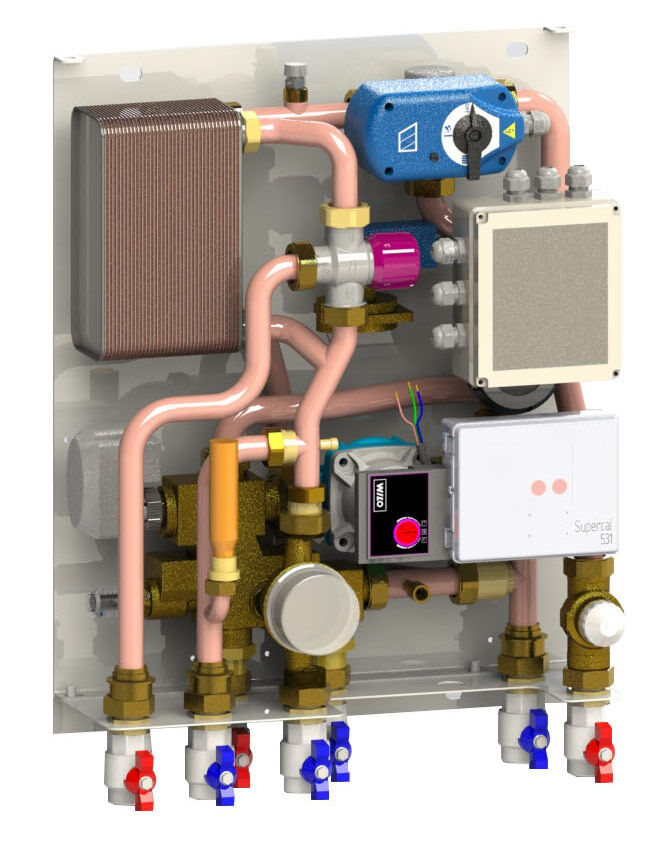

Multi-function thermal module that acts as a water and heat distribution interface between central heat generation and the independent supply of heating (room comfort controlled by a room thermostat, not supplied with the module) and domestic hot water. The module is installed in a metal frame that can be surface wall-mounted with a front panel (white RAL 9010). Temperature control and metering by individual consumer by means of an MID-compliant direct heat metering system (heating/cooling). Three-way solenoid valve with WEB system electronic logic (zero consumption in thermal off-line mode). Energy meter with the possibility of remote reading via M-Bus (EN1434) or Radio Frequency (bidirectional, 433 Mhz 10mW) powered by battery or 220VAC (options according to system requirements). Digital outputs (energy and volume) for direct connection to data centralisation systems. Other transmission systems available to order (4-20mA, 0-10VDC analogue outputs, relay modules, RS232)*. Multi-function monoblock valve that combines the functions of low-loss header, primary flow balancing and, on request, modulating flow temperature control, by mixing the primary flow and return fluid to and fr om the consumer. Models are available with electric pump, uprated heat exchanger, suitable for use in conjunction with condensing boilers and wh ere high DHW performance is required, and for traditional boilers for standard installations, including versions for remote heating. 1”F primary, secondary and domestic water circuit connections. Compliant with MID 2014/32/EU Italian legislative decree No. 22 2/02/07. (*) For all the options please consult Supercal 531 Technical Data Sheet
