DOMOCOMPACT MY HOME con dima aperta
Описание

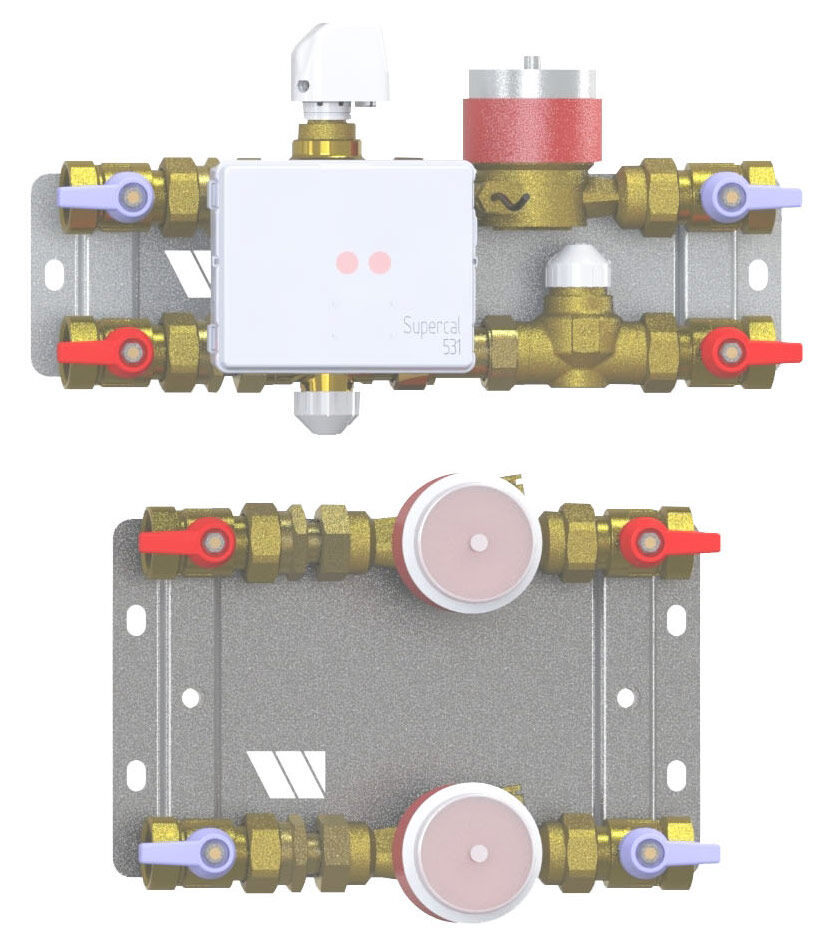

Temperature control and thermal energy metering module for consumers with flow rate requirements of up to 800 l/h and metering of domestic water (hot, cold and dual), pre-mounted on a sheet steel frame. Observe the direction of flow required by the volumetric flow meter. The module consists of: Energy metering section (heating and cooling) - Supercal 531 Series energy meter complete with Pt500 temperature sensors - single-jet turbine flow meter (WMT Series), compliant with MID MI004 - three-way zone valve - balancing valve - bypass regulation valve Energy meter with the possibility of remote reading via M-Bus (EN1434) or Radio Frequency (bidirectional, 433 Mhz 10mW) powered by battery or 230VAC or 24VAC (all options according to system requirements). Digital outputs (energy and volume) for direct connection to data centralisation systems. Other transmission systems available to order (4-20mA, 0-10VDC analogue outputs, relay modules, RS232)*. Domestic Water (DHW and DCW) and Dual Water (DW) metering section - single-jet turbine flow meter (WMT Series), compliant with MID MI001 (DCW and DHW) - additional flow meter for DW, compliant with MID MI001 Domestic hot or cold water circuit flow metering (Qn=4.0) by one or more single-jet turbine flow meters (WMT Series). The module is suitable for horizontal or vertical installation, with connections both right/left and left/right. Insulation and flushing pipes included for all models. 1” F heating section connections. 1” F domestic water section connections. Compliant with: MID 2014/32/EU Italian legislative decree No. 22 2/02/07. (*) For all the options please consult Supercal 531 Technical Data Sheet
Технічні характеристики
Артикули
Документи
- Domocompact My Home | DWG | DCH-DCE1XXX
- Domocompact My Home | DXF | DCH-DCE1XXX
- Domocompact My Home | STEP | DCH-DCE1XXX
- Domocompact My Home | DWG | DCH-DCE2XXX
- Domocompact My Home | DXF | DCH-DCE2XXX
- Domocompact My Home | STEP | DCH-DCE2XXX
- Domocompact My Home | DWG | DCH-DCE3XXX
- Domocompact My Home | DXF | DCH-DCE3XXX
- Domocompact My Home | STEP | DCH-DCE3XXX
- Domocompact My Home | DWG | DCH-DCEXXX
- Domocompact My Home | DXF | DCH-DCEXXX
- Domocompact My Home | STEP | DCH-DCEXXX
