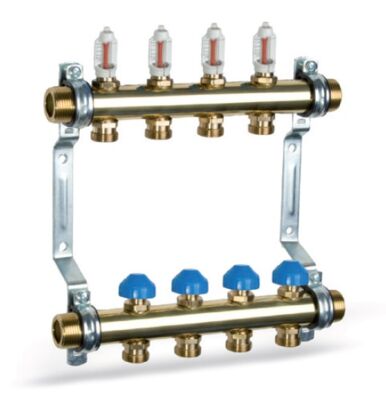

Heating Brass Manifold HKV2013A 50mm with flow meters for Underfloor
×
![]()
Heating Brass Manifold HKV2013A 50mm with flow meters for Underfloor
Heating Brass Manifold HKV2013A 50mm with flow meters for Underfloor
Описание
Brass round pipe heating circuit manifold according to EN 1264-4. Flat sealing connections 1”M. Low installation depth. Connection nipple G3/4” with Eurocone, 50 mm distance. Function and pressure tested. SUPPLY: Flowmeter 0 - 4 l/min with low pressure drop and shut-off function. RETURN: Control and shut-off valve with adaption M30 x 1,5.
- Max. admissible operation temperature: +90 °C
- Min. admissible operation temperature: -10 °C
- Max. admissible operation pressure: 10 bar
- Valves and fittings: Brass CW614N
- Manifold Pipe: Brass CW614N
- O-Rings: EPDM Elastomers
- Washers: EPDM Elastomers or Aramid AFM34
- Ball seat: PTFE
- Polymers: Impact- and temperature resistant
- Brackets: Steel, galvanized
