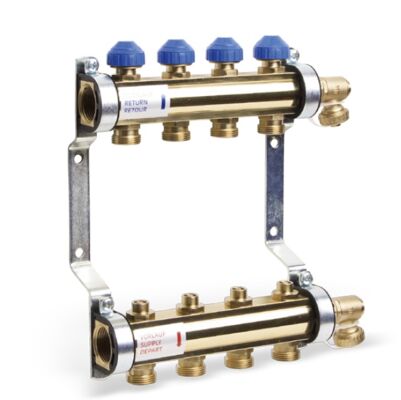

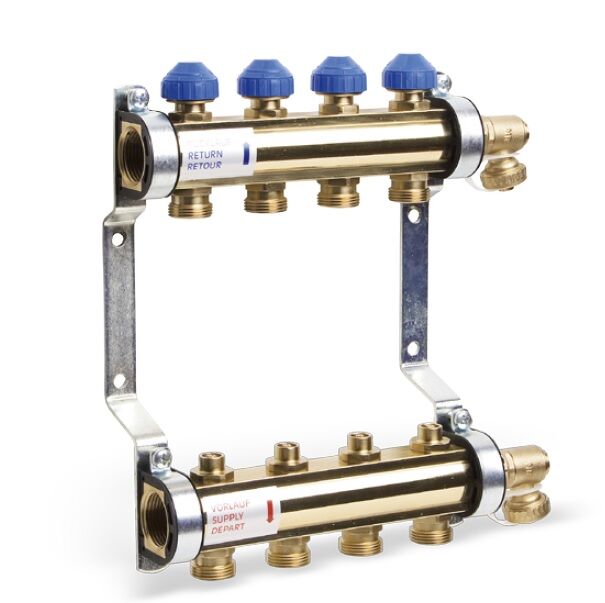

Heating Brass Manifold HKV for Underfloor (UFH)
×
![]()
Heating Brass Manifold HKV for Underfloor (UFH)
Heating Brass Manifold HKV for Underfloor (UFH)
Описание
Brass heating circuit hollow bar manifold according to EN 1264-4. Flat sealing connections 1”F. Connection nipple G3/4” with Eurocone, 50 mm distance. Function and pressure tested. SUPPLY: Fine-control and shut-off valve. RETURN: Control and shut-off valve with adaption M30x1,5.
- Max. admissible operation temperature: +80 °C
- Min. admissible operation temperature: -10 °C
- Max. admissible operation pressure: 10 bar
- Valves and fittings: Brass CW614N
- Manifold Pipe: Brass CW614N
- O-Rings: EPDM Elastomers
- Washers: EPDM Elastomers or Aramid AFM34
- Ball seat: PTFE
- Polymers: Impact- and temperature resistant
- Brackets: Steel, galvanized
