DR96F - Domoradiant fixed point 96%

DR96F - Domoradiant fixed point 96%
Перейти до розділу
Описание Технічні характеристики Артикули Документи Проекти Супутні продукти
Поставити запитання

Описание

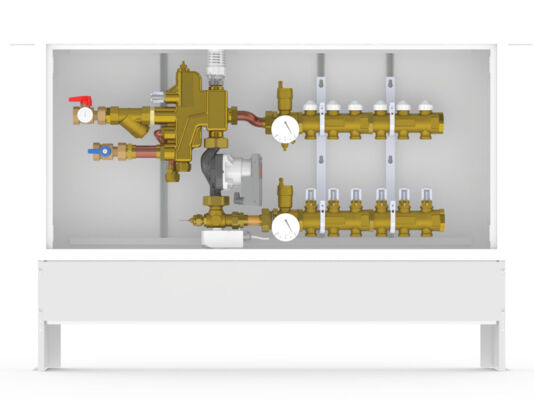

Pre-assembled module for fixed-point control, distribution and pumping of fluid for radiant panel systems. The system supplies and controls individual circuits with low-temperature fluid and can be set with a range of 20 to 50°C.

The module consists of:

6-way multi-function valve equipped with:

  • 3-way valve with bleeding from the primary circuit up to 96%

  • thermostatic actuator with remote sensor;

  • built-in low-loss header system;

  • balancing valve;

  • flow meter (5-50 l/min);

  • auxiliary connections (G1”) for any additional radiators;

  • primary circuit temperature display thermometer;

  • shut-off/isolating valves.

  • Y-strainer.

Pumping unit: consisting of a variable-speed electric pump in accordance with the Energy-related Products (ErP) Directive (2009/125/EC)

Distribution unit consisting of:

  • DN 1” 1/4 F brass manifolds - 822MM Series (return) and FLMR Series (flow)

  • EUROCONE DN 3/4”M side outlets

  • fitting for manifolds complete with thermometer (0 to 80°C), automatic air vent and drain.

Integrated control system (optional and supplied separately) consisting of:

  • 22C/22CX Series ON/OFF electrothermal actuators;

  • 4/6-zone modular control boxes (WFHC Series), which can be connected with a weekly programming clock for 2 heating zones;

  • electronic room thermostats (WFHT, BT, BT02 Series), also available in wireless version. Metal housing and white-painted frame and door.

Optional by-pass kit for differential pressure control.
