Stainless Steel Manifold with automatic flow control HKV2013A-AFC
×
![]()
Stainless Steel Manifold with automatic flow control HKV2013A-AFC
Stainless Steel Manifold with automatic flow control HKV2013A-AFC
Описание

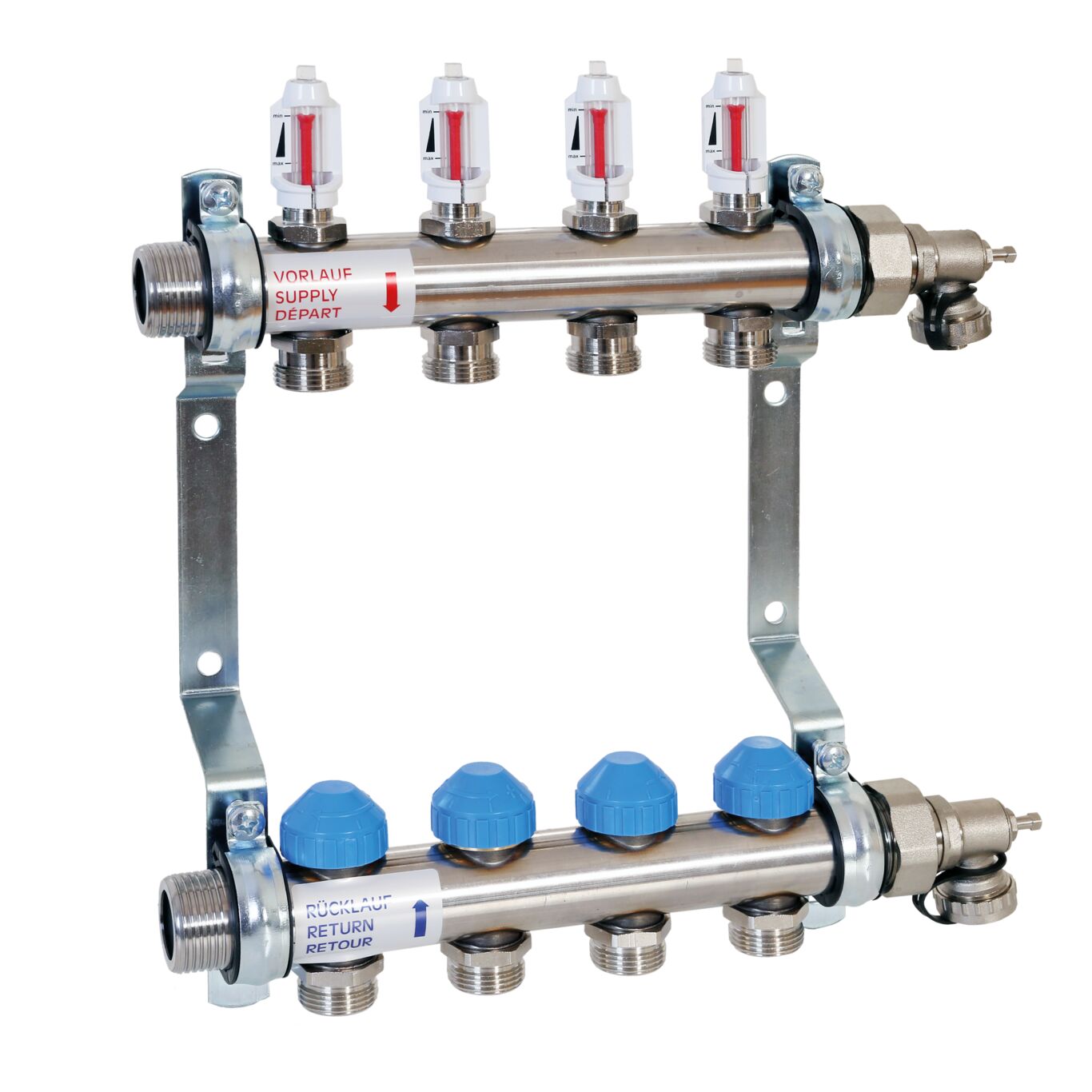

Stainless steel round pipe heating circuit manifold according to EN 1264-4. Flat sealing connections 1” M. Low installation depth. Connection nipple G 3/4” with Eurocone, 50 mm distance. End set KFE90. SUPPLY (top): Flowmeter with low pressure drop and shut-off function. RETURN (bottom): Control and shut-off valve with adaption M30 x 1,5 with setting range: 30 to 300 l/h.
- Max. admissible operation temperature: +70 °C
- Min. admissible operation temperature: -5 °C *
- Max. admissible operation pressure: 10 bar
- Valves and fittings: Brass CW614N /CW617N
- Manifold Pipe: stainless steel 1.4301
- O-Rings: EPDM Elastomers
- Washers: EPDM Elastomers or Aramid AFM34
- Polymers: Impact- and temperature resistant
- Brackets: Steel, galvanized
