Stainless steel manifold HKV2013A 1¼"
×
![]()
Stainless steel manifold HKV2013A 1¼"
Stainless steel manifold HKV2013A 1¼"
Описание

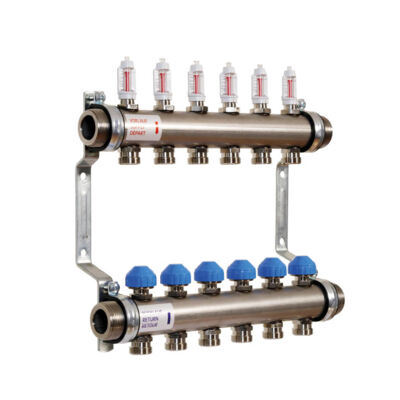

Stainless steel round pipe manifold in accordance with DIN EN 1264-4. 1 ¼" male flat sealing connection on both sides for manifold accessories and control pump station. Shut-off flow meters with very low pressure loss. Flow display 0-4 l/min or 0-6 l/min. Control and shut-off valves with M30x1.5 adaption. 11.8 mm closing point. Connection nipple G ¾" Euro cone. Centre distance between the outlets: 50 mm. Supply pipe on top, ready mounted on wall bracket, pipe clamps soundproofed according to DIN 4109.
