Pump mixing valve unit FlowBox HKFC25 with temperature controller
×
![]()
Pump mixing valve unit FlowBox HKFC25 with temperature controller
Pump mixing valve unit FlowBox HKFC25 with temperature controller
Описание

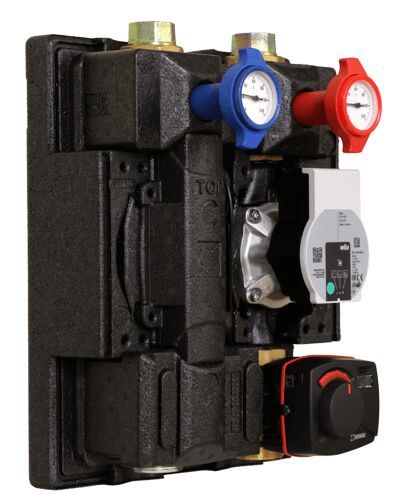

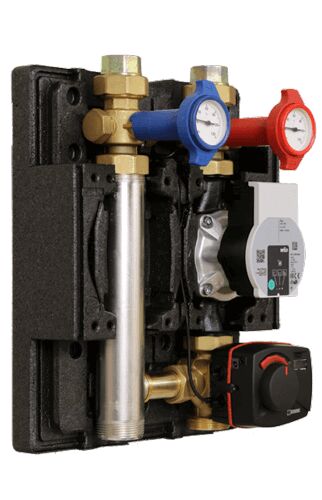

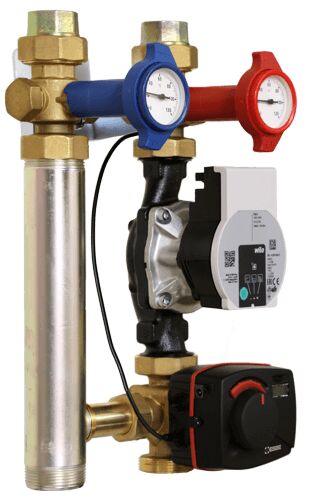

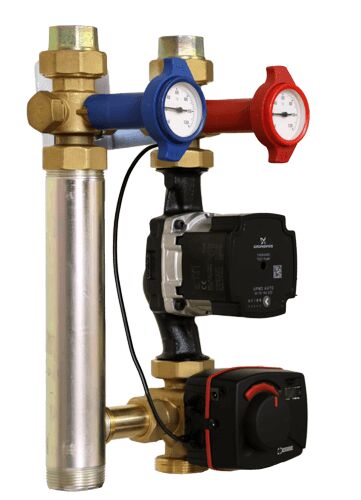

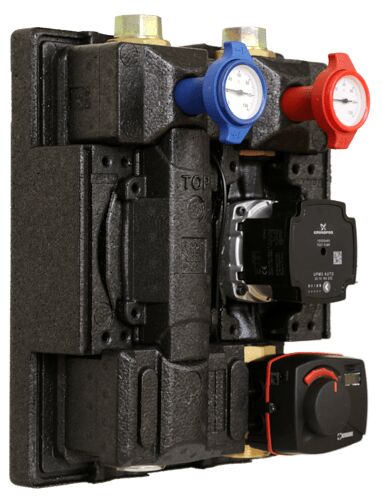

Compact pump and mixer group for mixed heating circuits with electrical fixed temperature control. Setting range: 5 - 95 °C1). 3-part patented EPP insulation shell provides a thermal insulation according to GEG (German Buildings Energy Act). Incl. wall bracket, fastening and 2 fittings for upper connection. Supply: shut-off valve with gravity brake and integrated thermometer 0-120 °C, circulation pump 180 mm, 3-way mixing valve, motor incl controller. Return: shut-off valve with integrated thermometer 0-120 °C. The flow and return pipes of FlowBox HKFC25 are interchangeable from left to the right side.
- Nominal size: DN25
- Max. operating pressure: 6 bar
- Operating temperature: +2 - +90° C
- Setting range: 20-95°C (Note the maximum operating temperature of the circulation pump!)
- Recommended range of application at DT=20 K, Dp=100 mbar: 32 kW
- All connections with flat sealings
- Axial distance: 125 mm
- Overall pump length: 180 mm
- Dimensions with insulation (W x H x D): 300 mm x 370 mm x 240 mm
