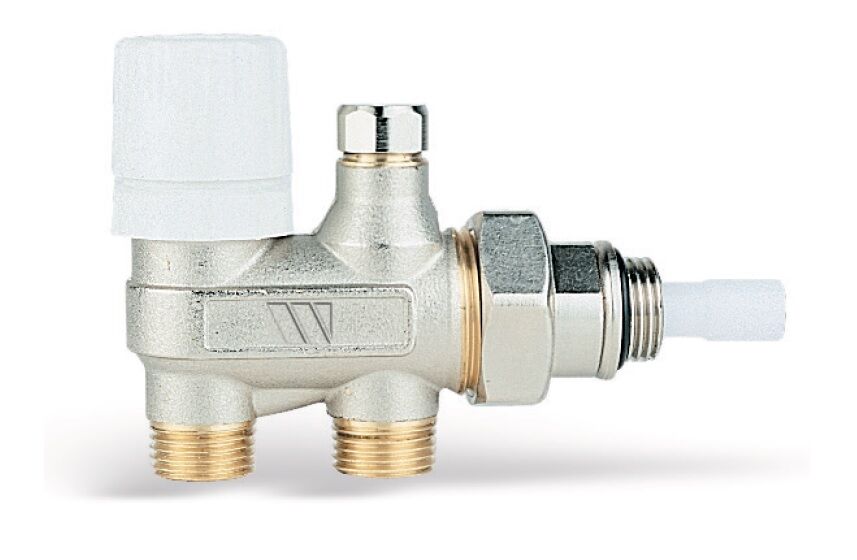

4-way nickel-plated thermostat adaptable valve 102M

4-way nickel-plated thermostat adaptable valve 102M

4 way nickel plated thermostat adaptable valve 102m

4-way nickel-plated thermostat adaptable valve 102M

Описание

4-way nickel-plated thermostat adaptable valve for one-pipe systems with fixed by-pass. With presetting. Built-in lockshield valve. Connection for copper or plastic pipe. O-ring sealed straight tailpiece, complete with flow separation probe. ABS handwheel. Differential pressure (item 148) : 1.5 bar. Kvn coefficient with 2K proportional band : - DN 1/2” = 1.76 - DN 3/4” = 1.84 Flow rate to radiator : 50%. Compatible with thermostatic actuators series 148, 148A and electrothermic actuators 22CX and 26LC.

Технічні характеристики

Артикули

Документи

4-way thermostat adaptable valves for two-pipes and one-pipe heating systems Serie 120B - 102M

Declaration of Conformity | THERMOSTATIC 4-WAY VALVES series 120B and 102M

User Manual | Thermostatic Head 148, 148A, 148SD, 148GA
