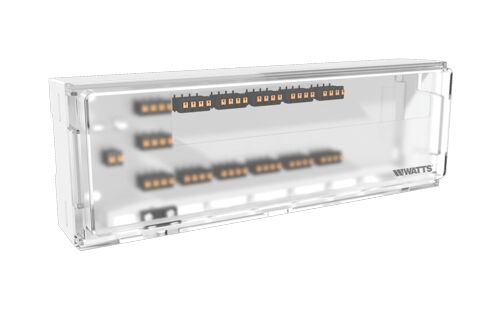

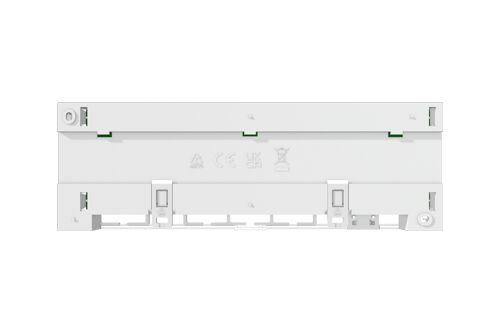

Wired Water Heating Controller WFC-03 24-230VAC
×
![]()
Wired Water Heating Controller WFC-03 24-230VAC
Wired Water Heating Controller WFC-03 24-230VAC
Описание
The Connecting box WFC 24-230 VAC is especially designed to control your Under Floor Heating system. It allows easy and quick connection of thermostats and actuators. It has integrated multiple functions: - Wall mounted or mounter on DIN Rail - Push-in cable connections with strain relief
- Maximal humidity percentage: 85% at 20°C (68°F)
- Electrical protection: Class II
- IP Protection: IP30
- Shipping and storage temperature: -10 °C à 50 °C (14 °F à 122 °F)
- Power supply: 24 (external transformer is required) or 230 VAC ± 10% 50Hz
- Output maximum load (2 outputs): Relay : 5A
- Actuators: 230V /24V NC up to 2.5W
- Compatibility WT-A03; WT-A03 HC; WT-D03; WT-DP03
