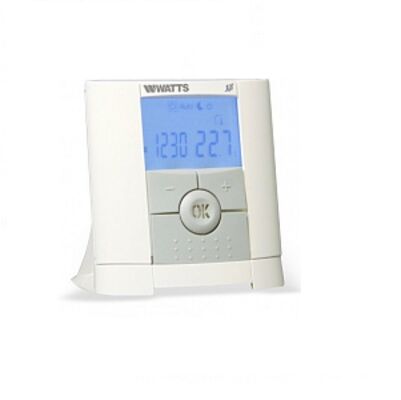

Wireless analog room termostat BT-DP02-RF
Описание
Digital radio frequency (868MHz) room chrono-thermostat with LCD display for controlling different types of heating and cooling** system. Temperature control is based on an internal sensor. An external sensor (PPLELE06019) can be connected without any additional external power supply. A red LED indicates that the heating system is ON. Operating temperature 0÷50°C. Installation Class II. Precision 0.1°C. Control ranges: Comfort, Reduced, Timer 5÷37°C in steps of 0.5°C. Vacation mode. Anti-freeze: 7°C (programmable). Control characteristics: proportional band (PWM 2°C/10min) or hysteresis of 0.5°C. Power supply 2 AAA LR03 1.5V Alkaline. Life ~2 years. Sensor: internal and/or external (opt.) NTC 10kW at 25°C. Radio frequency 868 MHz, <10mW. Compatible receivers Wall, Socket, Ver.02 *Version with humidity sensor. **If combined with a central unit BT-CTOLRF Compliant with: EMC 2014/30/EU - RoHS 2011/65/EU.
- Radio frequency 868 MHz.
- Bidirectional communication.
- Display with back-light.
- Special functions: keyboard lock function, open window function.
- Temperature differential 0.5 K or proportional band (PWM).
- Regulation on the integrated temperature sensor: NTC.
- Option: possibility to regulate on external sensor NTC 10K.
- Class of protection: IP30.
