Balancing valve SRV KVSR WattFlow

Description

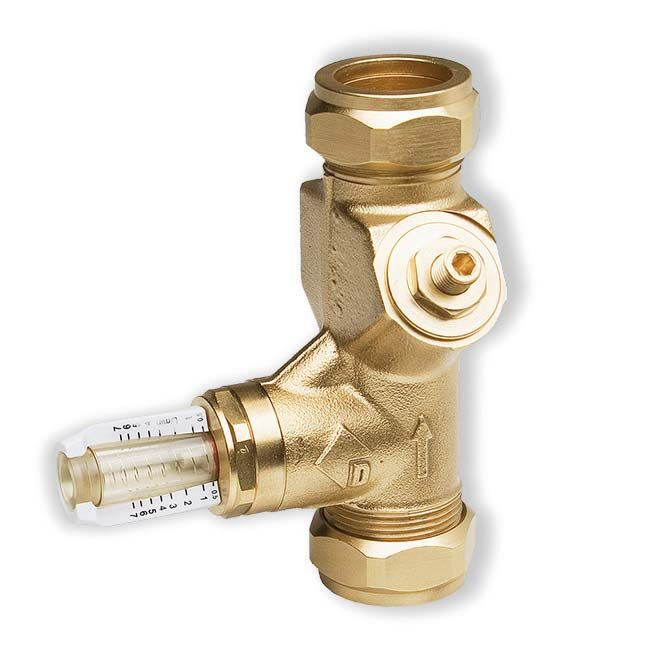

Balancing valve WattFlow BP. Body with double-sided compression fitting. Precise adjustment of the flow rate through Y-valve. Indication of the actual flow value on the integrated flow meter with rotatable indicator scale. The sight glass of the flow indicator is not installed directly in the medium flow and is therefore protected against soiling. No diagrams and measurement computers necessary. No correction factors for water/glycol mixtures required. Any installation position. Short installation length. Brass body, sight glass made of impact resistant plastic. Spring made of stainless steel. Seals made of EPDM. Max. operating temperature 100 °C at max. operating pressure 10 bar (or 120 °C at 6 bar).

Technical Features

Part no.

Type	Part no. WID	Size	Flow rate	Kvs
SRV-KVSR	10010142	1/2" 15 mm	0.5-7 l/min.	1.3
SRV-KVSR	10010143	1/2" 15 mm	2-16 l/min.	3.0
SRV-KVSR	10010145	3/4" 15 mm	4-36 l/min.	3.5
SRV-KVSR	10010146	1/2" 22 mm	0.5-7 l/min.	1.3
SRV-KVSR	10010148	1/2" 22 mm	2-16 l/min.	3.0
SRV-KVSR	10010150	3/4" 22 mm	4-36 l/min.	3.5
SRV-KVSR	10010131	1/2" 15-22 mm	0.5-7 l/min.	1.3
SRV-KVSR	10010133	1/2" 15-22 mm	2-16 l/min.	3.0
SRV-KVSR	10010135	3/4" 15-22 mm	4-36 l/min.	3.5
