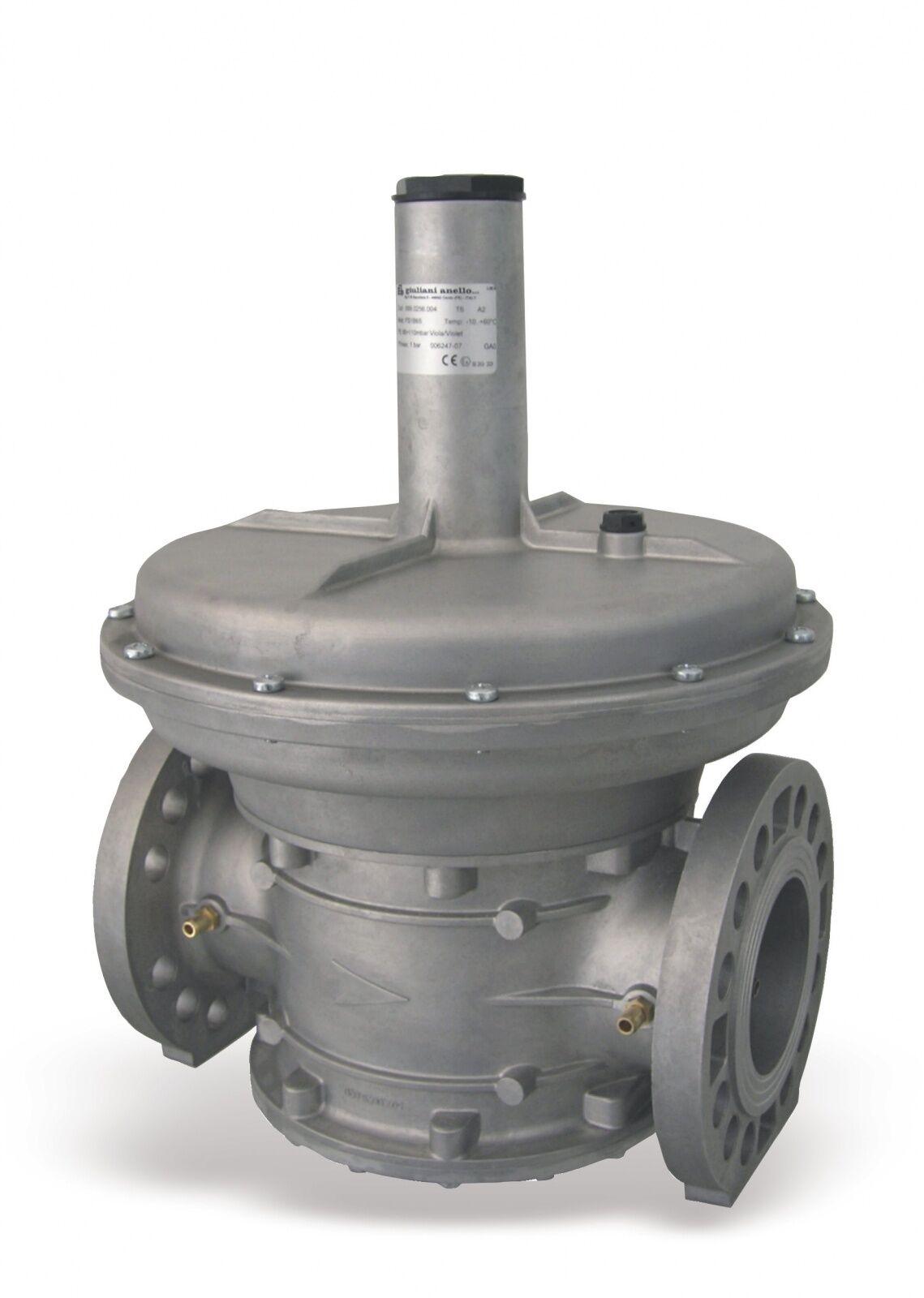

Gas governor FS1B with filter unit inside
×
![]()
Gas governor FS1B with filter unit inside
Gas governor FS1B with filter unit inside
Description
Aluminium pressure regulator with built-in filter, to EN 88-2. Max. inlet pressure 1 bar. Max. outlet pressure 450 mbar. Closure control. Suitable for manufactured gas, natural gas, liquefied petroleum gas (LPG), non-aggressive gas and air. Operating temperature range: -15÷60°C.
Technical Features
Part no.
| Type | Part Number | Connection | Description | Q.ty/ Box | Box/ Carton |
| FS1B65 | 009.0256.201 | DN 65 | With neutral spring 10-30 mbar | 1 | 1 |
| FS1B65 | 009.0256.203 | DN 65 | With red spring 25-80 mbar | 1 | 1 |
| FS1B65 | 009.0256.204 | DN 65 | With violet spring 60-120 mbar | 1 | 1 |
| FS1B65 | 009.0256.206 | DN 65 | With blue spring 100-220 mbar | 1 | 1 |
| FS1B65 | 009.0256.207 | DN 65 | With white spring 200- 450 mbar | 1 | 1 |
| FS1B80 | 009.0257.201 | DN 80 | With neutral spring 10-30 mbar | 1 | 1 |
| FS1B80 | 009.0257.203 | DN 80 | With red spring 25-80 mbar | 1 | 1 |
| FS1B80 | 009.0257.204 | DN 80 | With violet spring 60-120 mbar | 1 | 1 |
| FS1B80 | 009.0257.206 | DN 80 | With blue spring 100-220 mbar | 1 | 1 |
| FS1B80 | 009.0257.207 | DN 80 | With white spring 200- 450 mbar | 1 | 1 |
