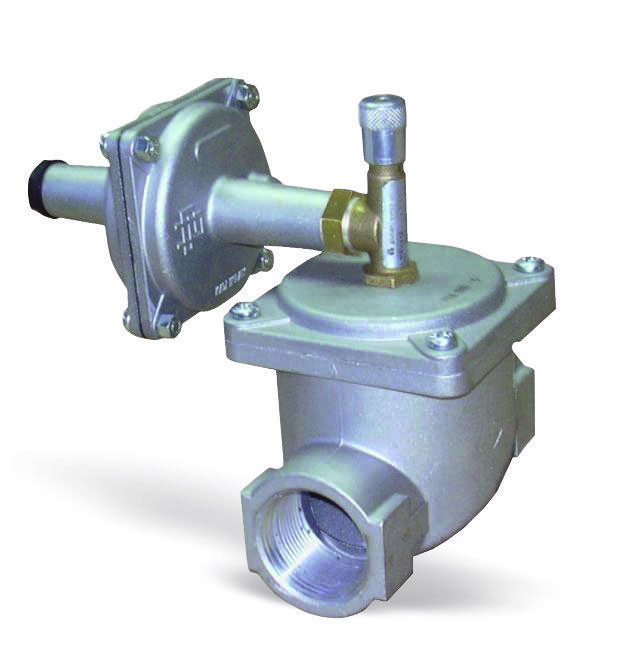

Maximum pressure shut-off valve MB
×
![]()
Maximum pressure shut-off valve MB
Maximum pressure shut-off valve MB
Description
Aluminium maximum pressure shut-off valve to EN 88-2. Max. inlet pressure 1 bar. Suitable for manufactured gas, natural gas, liquefied petroleum gas (LPG), non-aggressive gas and air. Operating temperature range: -10÷60°C.
Technical Features
Part no.
| Type | Part Number | Connection | Description | Q.ty/Box | Box/Carton |
| MB20 | 019.0002.001 | 3/4" | With neutral spring 80-550 mbar | 1 | 1 |
| MB20 | 019.0002.002 | 3/4" | With blue spring 30- 120 mbar | 1 | 1 |
| MB25 | 019.0003.001 | 1" | With neutral spring 80-550 mbar | 1 | 1 |
| MB25 | 019.0003.002 | 1" | With blue spring 30- 120 mbar | 1 | 1 |
| MB32 | 019.0004.001 | 1.1/4" | With neutral spring 80-550 mbar | 1 | 1 |
| MB32 | 019.0004.002 | 1.1/4" | With blue spring 30- 120 mbar | 1 | 1 |
| MB40 | 019.0005.001 | 1.1/2" | With neutral spring 80-550 mbar | 1 | 1 |
| MB40 | 019.0005.002 | 1.1/2" | With blue spring 30- 120 mbar | 1 | 1 |
| MB50 | 019.0006.001 | 2" | With neutral spring 80-550 mbar | 1 | 1 |
| MB50 | 019.0006.002 | 2" | With blue spring 30- 120 mbar | 1 | 1 |
| MB65 | 019.0007.101 | DN65 | With neutral spring 80-550 mbar | 1 | 1 |
| MB65 | 019.0007.102 | DN65 | With blue spring 30- 120 mbar | 1 | 1 |
| MB80 | 019.0008.101 | DN80 | With neutral spring 80-550 mbar | 1 | 1 |
| MB80 | 019.0008.102 | DN80 | With blue spring 30- 120 mbar | 1 | 1 |
| MB100 | 019.0009.001 | DN100 | With neutral spring 80-550 mbar | 1 | 1 |
| MB100 | 019.0009.002 | DN100 | With blue spring 30- 120 mbar | 1 | 1 |
| MB125 | 019.0010.001 | DN125 | With neutral spring 80-550 mbar | 1 | 1 |
| MB125 | 019.0010.002 | DN125 | With blue spring 30- 120 mbar | 1 | 1 |
| MB150 | 019.0011.001 | DN150 | With neutral spring 80-550 mbar | 1 | 1 |
| MB150 | 019.0011.002 | DN150 | With blue spring 30- 120 mbar | 1 | 1 |
