Description

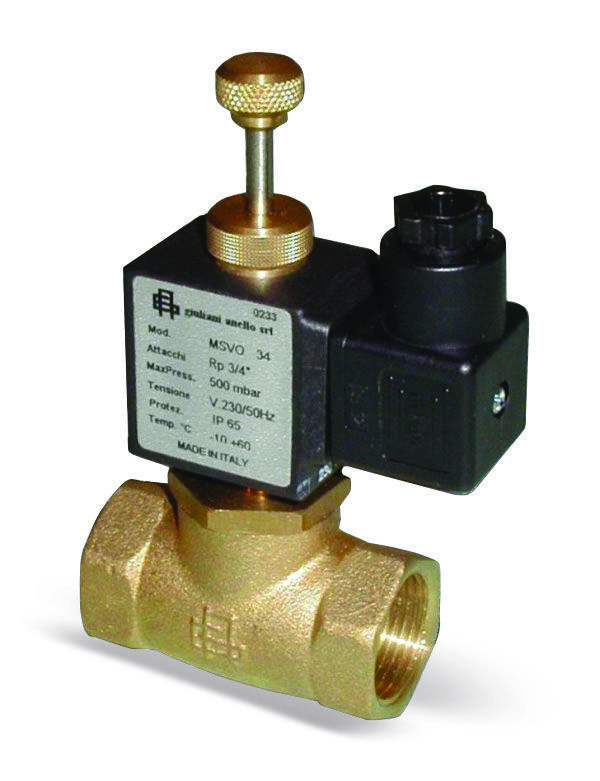

Normally closed gas solenoid valve with manual resetting and threaded connections. Brass body. Coil with IP65 connector. Suitable for manufactured gas, natural gas, liquefied petroleum gas (LPG), non-aggressive gas and air. Operating temperature range: -20÷60°C. Max. operating pressure: 6 bar.

Technical Features

Part no.

Type Part Number Connection Description Q.ty/Box Box/Carton
EVO15/6B 010.0050.001 1/2" Voltage 230 Vac. 1 1
EVO15/6B 010.0050.002 1/2" Voltage 24 Vac. 1 1
EVO15/6B 010.0050.003 1/2" Voltage 12 Vdc. 1 1
EVO20/6B 010.0051.001 3/4" Voltage 230 Vac. 1 1
EVO20/6B 010.0051.002 3/4" Voltage 24 Vac. 1 1
EVO20/6B 010.0051.003 3/4" Voltage 12 Vdc. 1 1
EVO25/6B 010.0052.001 1" Voltage 230 Vac. 1 1
EVO25/6B 010.0052.002 1" Voltage 24 Vac. 1 1
EVO25/6B 010.0052.003 1" Voltage 12 Vdc. 1 1
