Description

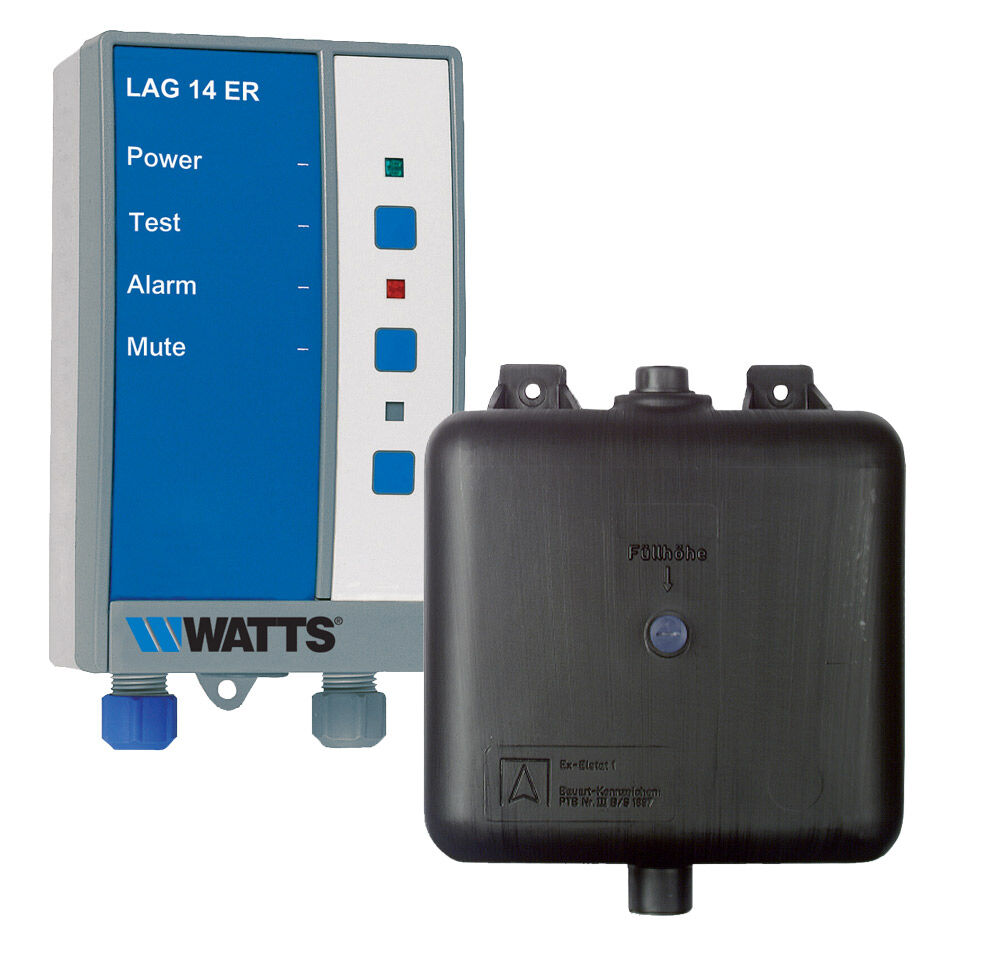

Leak detector system for double-skin tanks designed for flammable liquid storage, consisting of electronic control unit with visual (LED) and acoustic alarm indicator and additional output contact, anti-static tank for leak detector fluid that can be installed in hazard zones and intrinsic safety probe. Power supply 230 V, 50 Hz. Maximum probe connection distance 50m with shielded cable. Suitable for in-ground tanks with a capacity of up to approximately 60,000 litres and for above-ground tanks with a capacity of up to approximately 20,000 litres. To fit the detector system, use the complete set of LAGMS accessories.

Technical Features

Part no.

Type Part Number Description Q.ty/Box Box/Carton
LAG 14 ER 0190150 Complete central unit 1 1
BA14 0191006 Additional tank 1 1
