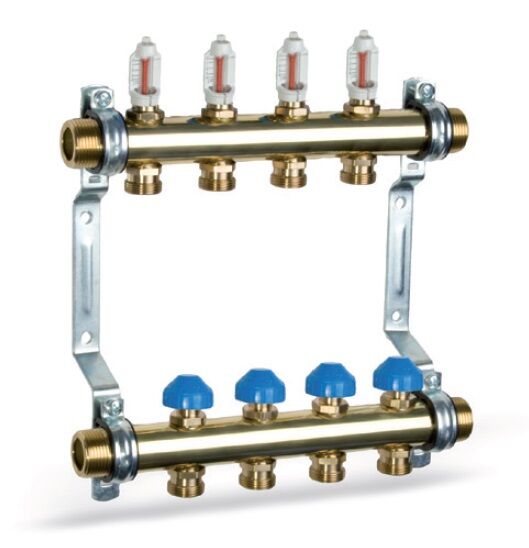

Heating brass manifold HKV2013A with flow meters 0-4 l/min for Underfloor
×
![]()
Heating brass manifold HKV2013A with flow meters 0-4 l/min for Underfloor
Heating brass manifold HKV2013A with flow meters 0-4 l/min for Underfloor
Description
Brass round pipe heating circuit manifold according to EN 1264-4. Flat sealing connections 1”M. Low installation depth. Connection nipple G3/4” with Eurocone, 50 mm distance. Function and pressure tested. SUPPLY: Flowmeter 0 - 4 l/min with low pressure drop and shut-off function. RETURN: Control and shut-off valve with adaption M30 x 1,5.
- Max. admissible operation temperature: +90 °C
- Min. admissible operation temperature: -10 °C
- Max. admissible operation pressure: 10 bar
- Valves and fittings: Brass CW614N
- Manifold Pipe: Brass CW614N
- O-Rings: EPDM Elastomers
- Washers: EPDM Elastomers or Aramid AFM34
- Ball seat: PTFE
- Polymers: Impact- and temperature resistant
- Brackets: Steel, galvanized
Technical Features
Part no.
| Type | Part no. WID | Outlets |
| HKV2013A MS02 | 10025907 | for 2 heating circuits |
| HKV2013A MS03 | 10025908 | for 3 heating circuits |
| HKV2013A MS04 | 10025909 | for 4 heating circuits |
| HKV2013A MS05 | 10025910 | for 5 heating circuits |
| HKV2013A MS06 | 10025911 | for 6 heating circuits |
| HKV2013A MS07 | 10025912 | for 7 heating circuits |
| HKV2013A MS08 | 10025913 | for 8 heating circuits |
| HKV2013A MS09 | 10025914 | for 9 heating circuits |
| HKV2013A MS10 | 10025915 | for 10 heating circuits |
| HKV2013A MS11 | 10025916 | for 11 heating circuits |
| HKV2013A MS12 | 10025917 | for 12 heating circuits |
