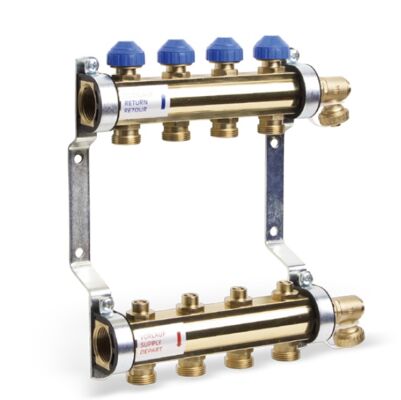

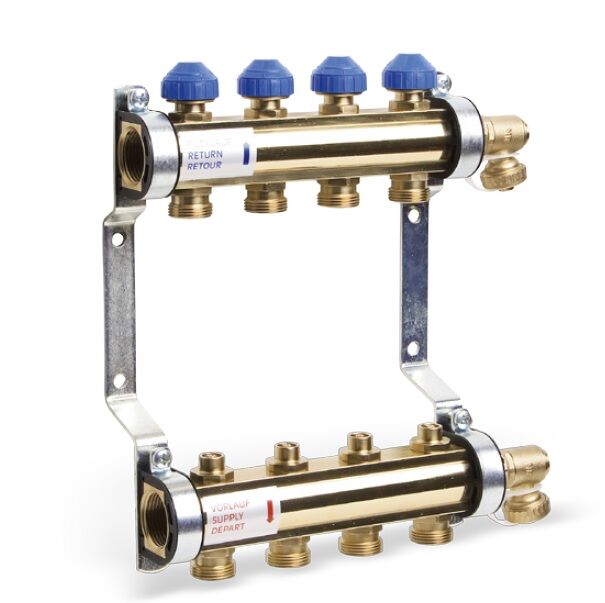

Heating Brass Manifold HKV for Underfloor (UFH) 1"

Heating Brass Manifold HKV for Underfloor (UFH) 1"

Description

Brass heating circuit hollow bar manifold according to EN 1264-4. Flat sealing connections 1”F. Connection nipple G3/4” with Eurocone, 50 mm distance. Function and pressure tested. SUPPLY: Fine-control and shut-off valve. RETURN: Control and shut-off valve with adaption M30x1,5.

Max. admissible operation temperature: +80 °C
Min. admissible operation temperature: -10 °C
Max. admissible operation pressure: 10 bar
Valves and fittings: Brass CW614N
Manifold Pipe: Brass CW614N
O-Rings: EPDM Elastomers
Washers: EPDM Elastomers or Aramid AFM34
Ball seat: PTFE
Polymers: Impact- and temperature resistant
Brackets: Steel, galvanized

Technical Features

Part no.

Type	Part no. WID	Outlets
HKV	10004172	2 - 3/4" 2
HKV	10004174	3 - 3/4" 3
HKV	10004176	4 - 3/4" 4
HKV	10004178	5 - 3/4" 5
HKV	10004180	6 - 3/4" 6
HKV	10004182	7 - 3/4" 7
HKV	10004184	8 - 3/4" 8
HKV	10004186	9 - 3/4" 9
HKV	10004188	10 - 3/4" 10
HKV	10004190	11 - 3/4" 11
HKV	10004192	12 - 3/4" 12
