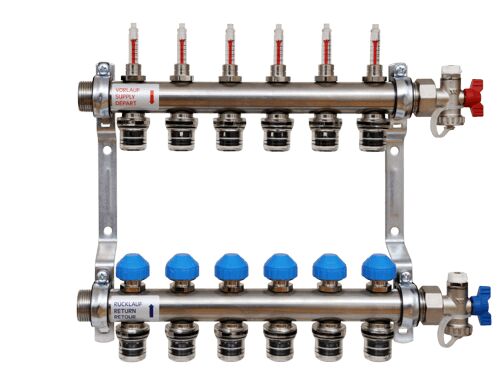

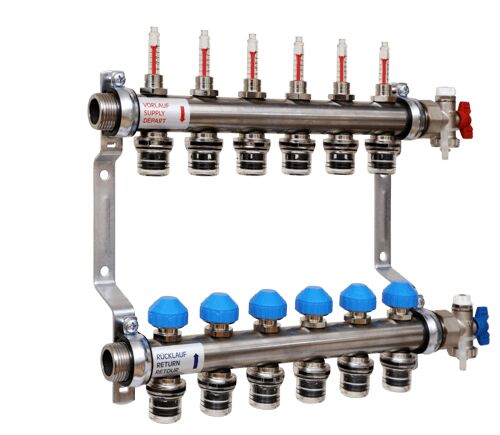

Heating circuit manifold HKV PnG Med with push-fit connector end pieces
Description
Stainless steel round pipe manifold according to DIN EN 1264-4. Flat-sealing 1" male connection on both sides for manifold accessories and manifold control station. Pre-assembled Push'n'Go connectors on outlets for connection of Ø 16 mm PEX pipe according to DIN EN ISO 15875-2 or PERT pipe (Important: not suitable for connecting to aluminium composite pipes). Centre distance of the outlets 50 mm. Ready-mounted on wall bracket, pipe clamps sound-insulated according to DIN 4109. Supply (top): Shut-off flow meter with very low pressure loss. Flow rate display 0-4 l/min. Return (bottom): regulating and shut-off valves with adaptation M30 x 1.5. Closing dimension 11.8 mm. Scope of delivery: Manifold complete with end pieces ES-SET Quattro 1".
Technical Features
- Max. operating pressure: 6 bar
- Medium temperature: 5 to 55° C
- Media: Water or water with glycol as per VDI 2035
- Connection to the primary circuit and end set: G 1" male thread
- Heating circuit connection: Ø 16 PE-X pipe in accordance with DIN EN ISO 15875-2 or PER-T pipe
(not suitable for connecting to aluminium composite pipes) - Connection for actuator: M30 x 1.5 / closing point 11.8 mm / stroke 2.5
- Manifold: Stainless steel 1.4301
Technical Features
Part no.
Typ |
Part no. |
|
HKV 0-4 1" VA PnG Med 02 |
10084905 |
for 2 heating circuits |
HKV 0-4 1" VA PnG Med 03 |
10084906 |
for 3 heating circuits |
HKV 0-4 1" VA PnG Med 04 |
10084907 |
for 4 heating circuits |
HKV 0-4 1" VA PnG Med 05 |
10084908 |
for 5 heating circuits |
HKV 0-4 1" VA PnG Med 06 |
10084909 |
for 6 heating circuits |
HKV 0-4 1" VA PnG Med 07 |
10084910 |
for 7 heating circuits |
HKV 0-4 1" VA PnG Med 08 |
10084911 |
for 8 heating circuits |
HKV 0-4 1" VA PnG Med 09 |
10084912 |
for 9 heating circuits |
HKV 0-4 1" VA PnG Med 10 |
10084913 |
for 10 heating circuits |
HKV 0-4 1" VA PnG Med 11 |
10084914 |
for 11 heating circuits |
HKV 0-4 1" VA PnG Med 12 |
10084915 |
for 12 heating circuits |
