PE-X x PE-X Elbow Coupling Heating MJ90
×
![]()
PE-X x PE-X Elbow Coupling Heating MJ90
PE-X x PE-X Elbow Coupling Heating MJ90
Description

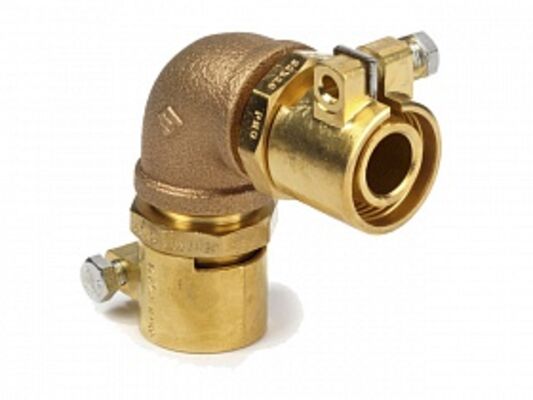

Elbow coupling for use in piping systems equipped with transport pipes for heating, cold or cooling water applications. The coupling has a long supporting pipe for optimal clamping, a conical outside thread connection and a clamping ring with stainless steel bolt. The included remote plate makes it easier to fit the coupling. The use of an elbow insulation kit with shrink caps or EPDM-end caps is recommended for underground connections. Assembly instructions: see our Installation manual.
• Max operating pressure: 6 bar (16 bar)
• Max fluid temperature: +95°C (+25°C)
• PEX-a and PE pipes: SDR 11
• Supporting pipe material: CW602N
• Clamping ring material: CW602N
• Max fluid temperature: +95°C (+25°C)
• PEX-a and PE pipes: SDR 11
• Supporting pipe material: CW602N
• Clamping ring material: CW602N
Technical Features
Part no.
| Art. No. | PE-X dout/s (mm) | Thread (inch) | ø Outer Diameter of Pipe (mm) |
| MJ9025/23 | 25/2.3 | 2 x 3/4" | 25 x 25 |
| MJ9032/29 | 32/2.9 | 2 x 1" | 32 x 32 |
| MJ9040/37 | 40/3.7 | 2 x 1 1/4" | 40 x 40 |
| MJ9050/46 | 50/4.6 | 2 x 1 1/2" | 50 x 50 |
| MJ9063/58 | 63/5.8 | 2 x 2" | 63 x 63 |
| MJ9075/68 | 75/6.8 | 2 x 2 1/2" | 75 x 75 |
| MJ9090/82 | 90/8.2 | 2 x 3" | 90 x 90 |
| MJ90110/100 | 110/10.0 | 2 x 4" | 110 x 110 |
| MJ90125/114 | 125/11.4 | 2 x 4" | 125 x 125 |
