3 x PE-X T- coupling sanitary MJ130
×
![]()
3 x PE-X T- coupling sanitary MJ130
3 x PE-X T- coupling sanitary MJ130
Description

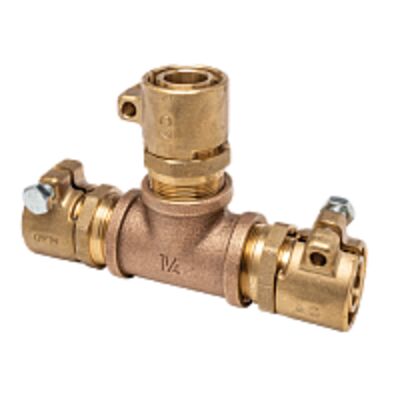

T-connection coupling for use in piping systems equipped with transport pipes for sanitary, cold or hot water applications. The coupling has a long supporting pipe for optimal clamping, a conical outside thread connection and a clamping ring with stainless steel bolt. The included remote plate makes it easier to fit the coupling. The use of a T insulation kit with shrink caps or EPDM-end caps is recommended for underground connections. Assembly instructions: see our Installation manual.
• Max operating pressure: 10 bar
• Max fluid temperature: +95°C
• PEX-a pipes: SDR 7.4
• Supporting pipe material: CW602N
• Clamping ring material: CW602N
• Max fluid temperature: +95°C
• PEX-a pipes: SDR 7.4
• Supporting pipe material: CW602N
• Clamping ring material: CW602N
Technical Features
Part no.
| Art. No. | PE-X dout/s (mm) | Thread (inch) | ø Outer Diameter of Pipe (mm) |
| MJ13025/35 | 25/3.5 | 3x3/4” | 25x25x25 |
| MJ13032/44 | 32/4.4 | 3x1” | 32x32x32 |
| MJ1304032/55 | 40/5.5+32/4.4 | 2x11/4”+ 1x1” | 40x32x40 |
| MJ13040/55 | 40/5.5 | 3x11/4” | 40x40x40 |
| MJ13050/69 | 50/6.9+40/5.5 | 2x11/2“+1x11/4” | 50x40x50 |
| MJ13063/87 | 50/6.9 | 3x11/2” | 50x50x50 |
| MJ1306350/87 | 63/8.7+50/6.9 | 2x2”+1x11/2” | 63x50x63 |
| MJ1305040/69 | 63/8.7 | 3x2” | 63x63x63 |
| MJ13075/103 | 75/10.3 | 3x21/2” | 75x75x75 |
| MJ13090/123 | 90/12.3 | 3x3” | 90x90x90 |
| MJ130110/151 | 110/15.1 | 3x4” | 110x110x110 |
