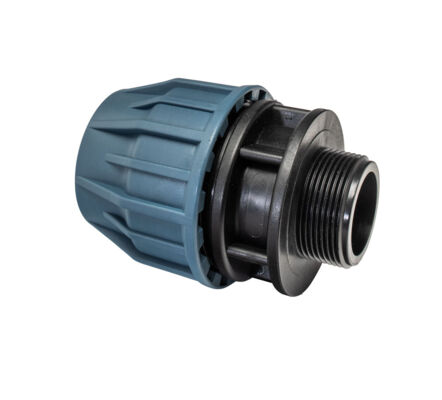

PE-coupling with male thread - 16 Bar
×
![]()
PE-coupling with male thread - 16 Bar
PE-coupling with male thread - 16 Bar
Description
Polypropylene coupling for use in cold and cooling water systems, sea water and chlorine water systems. Suitable for connection to PE transport pipes.
• Max operating pressure at 20°C: 16 bar for 32-63 mm
• Max operating pressure at 20°C: 10 bar for 75-110 mm
• PE pipes: SDR 11
• Material: polypropylene
• Max operating pressure at 20°C: 10 bar for 75-110 mm
• PE pipes: SDR 11
• Material: polypropylene
Technical Features
Part no.
| Art. No. | PE dout /s (mm) | Thread (inch) |
| MPP3414432/29 | 32/2.9 | 1”M |
| MPP3415440/37 | 40/3.7 | 1 1/4”M |
| MPP3416450/46 | 50/4.6 | 1 1/2”M |
| MPP341263/58 | 63/5.8 | 2”M |
| MPP34121275/68 | 75/6.8 | 2 1/2”M |
| MPP341390/82 | 90/8.2 | 3”M |
| MPP3414110/10 | 110/10.0 | 4”M |
