MG1-INOX 100
×
![]()
MG1-INOX 100
MG1-INOX 100
Description

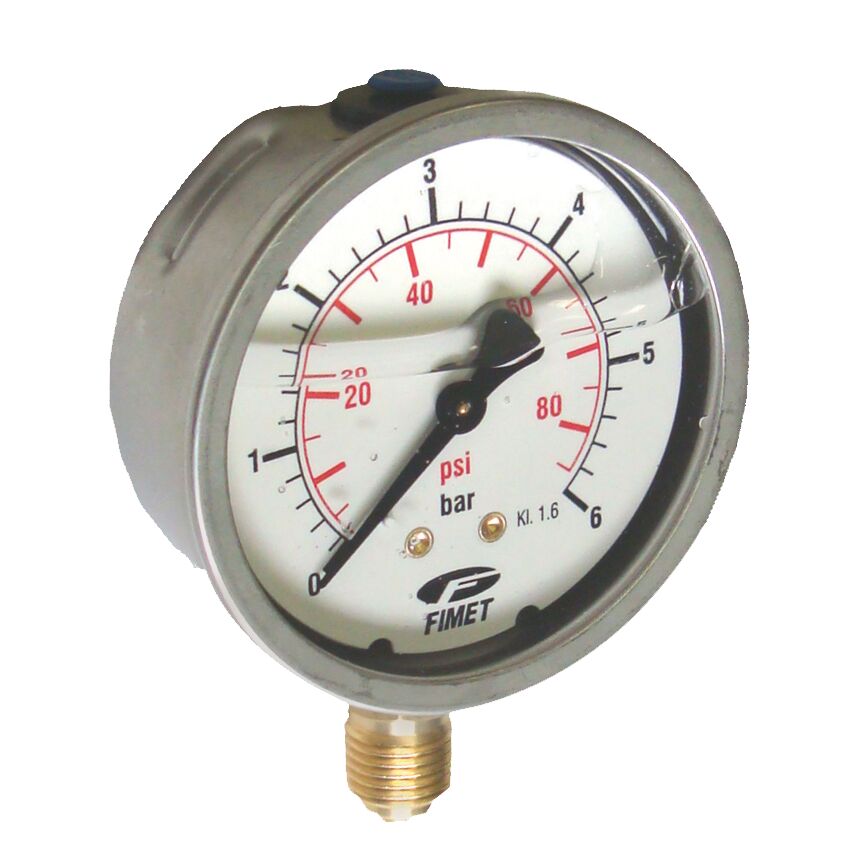

DN 100 bottom-connection glycerin-filled pressure gauge with stainless steel body, for industrial applications. Measuring range 0÷1 to 0÷600 bar and dual scale bar/psi. Accuracy class 1.6. Other scales and connections available to order. EN 837-1 compliant.
Technical Features
Part no.
| Part Number | Range | Connection | Q.ty/Box | Box/Carton |
| PE540116LF | 0÷1 bar/psi | G1/2B | 30 | 30 |
| PE540216 | 0÷1.6 bar/psi | G1/2B | 30 | 30 |
| PE550316LF | 0÷2.5 bar/psi | G1/2B | 1 | 30 |
| PE550416LF | 0÷4 bar/psi | G1/2B | 1 | 30 |
| PE550616LF | 0÷6 bar/psi | G1/2B | 1 | 30 |
| PE551016LF | 0÷10 bar/psi | G1/2B | 1 | 30 |
| PE551216LF | 0÷10 bar/psi | G1/2B | 1 | 30 |
| PE551616LF | 0÷10 bar/psi | G1/2B | 1 | 30 |
| PE552016LF | 0÷20 bar/psi | G1/2B | 30 | 30 |
| PE552516LF | 0÷25 bar/psi | G1/2B | 1 | 30 |
| PE554016LF | 0÷40 bar/psi | G1/2B | 1 | 30 |
