M1-ABS 50/R
×
![]()
M1-ABS 50/R
M1-ABS 50/R
Description

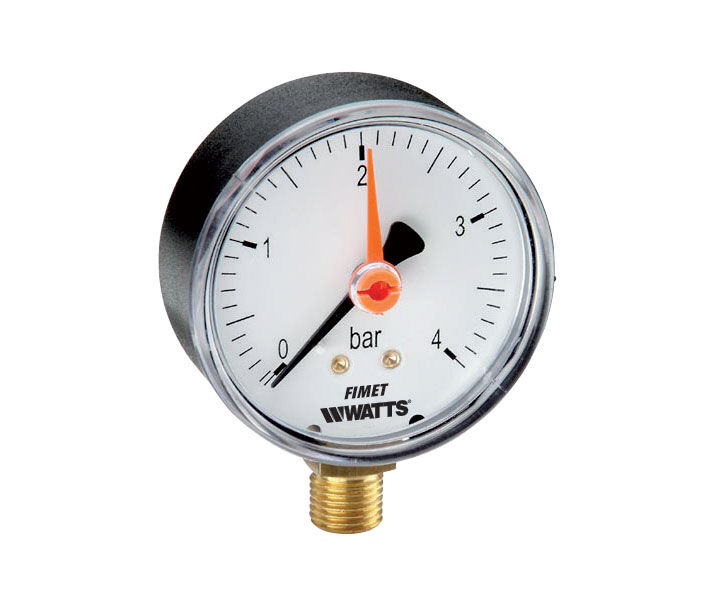

DN 50 bottom-connection pressure gauge with plastic body and red pointer for heating systems. Measuring range 0÷4 to 0÷40 bar. Accuracy class 1.6. Other scales and connections available to order. EN 837-1 compliant.
Technical Features
Part no.
| Part Number | Range | Connection | Q.ty/Box | Box/Carton |
| PA2204BB10 | 0÷4 bar | G1/4B | 10 | 100 |
| PA2206BB13 | 0÷6 bar | G1/4B | 10 | 100 |
| PA2210BB12 | 0÷10 bar | G1/4B | 10 | 100 |
| PA2216BB09 | 0÷16 bar | G1/4B | 10 | 100 |
| PA2225BB04 | 0÷25 bar | G1/4B | 100 | 100 |
| PA2240BB00 | 0÷40 bar | G1/4B | 100 | 100 |
