Description

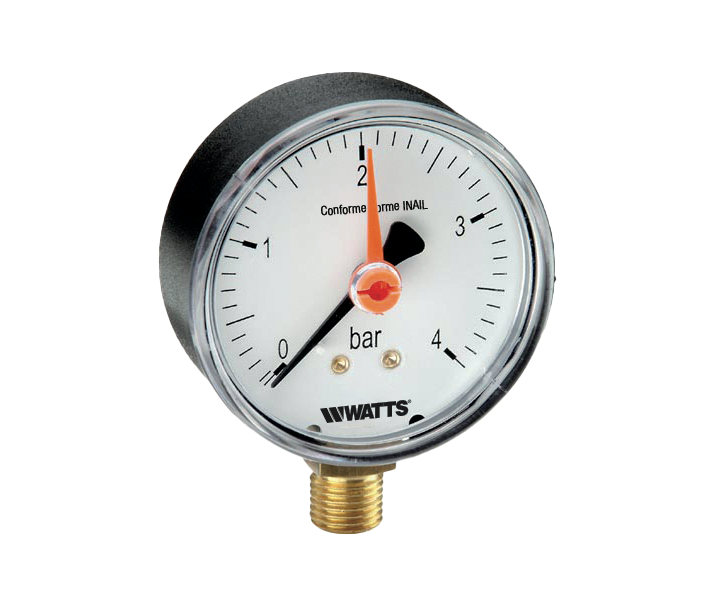

Bourdon tube pressure gauges, M1-ABS/FE+R Series, for heating industry, gases and liquids not viscous, not aggressive and not crystallising. Dry plastic case DN 50mm bottom entry red adjustable pointer on window. Vacuum measures range -1/0 at high pressure up to 400 bar. Temperature limits + 60°C, Accuracy class 2.5.

Compliant with EN 837-1.
Conformity with the requirements of INAIL (ex ISPEL) - Raccolta R, appliance to the Italian decree D.M.1.12.1975.

Technical Features

Part no.

Part n.Pressure RangeConnectionBoxMaster
PZFEA2204BB100÷4 barG1/4B10100
PZFEA2206BB130÷6 barG1/4B10100
PZFEA2210BB120÷10 barG1/4B10100
PZFEA2216BB090÷16 barG1/4B10100
PZFEA2225BB040÷25 barG1/4B10100
PZFEA2240BB000÷40 barG1/4B10100
