Description

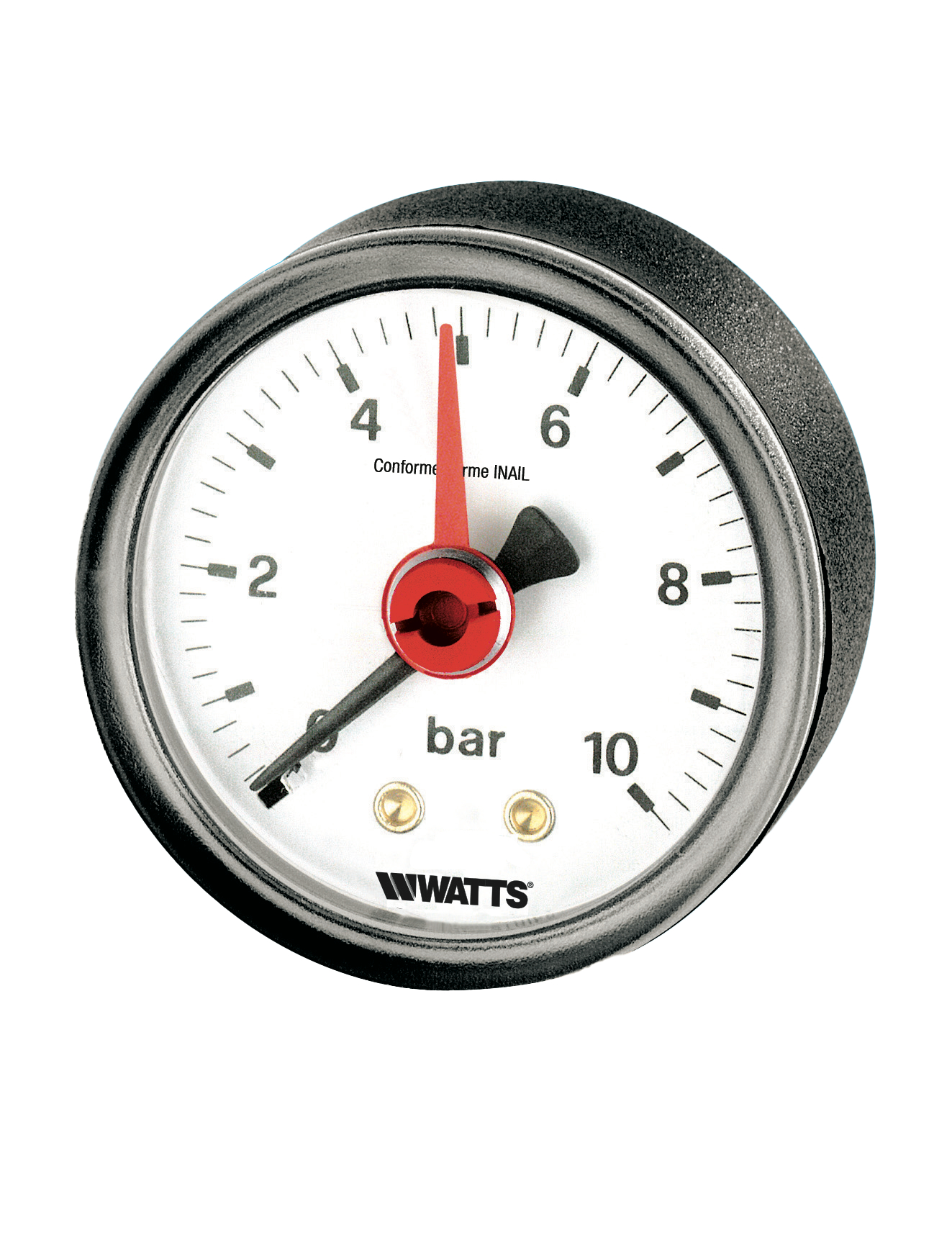

Bourdon tube pressure gauges M3A-ABS/FE/R Series for heating industry, gases and liquids not viscous, not aggressive and not crystallising. Dry plastic case DN 63mm centre back entry red adjustable pointer on window. Vacuum measures range -1/0 at high pressure up to 400 bar. Temperature limits + 60°C. Accuracy class 2.5.

Compliant with EN 837-1.
Conformity with the requirements of INAIL (ex ISPEL) - Raccolta R, appliance to the Italian decree D.M.1.12.1975.

Technical Features

Part no.

Part n.Pressure RangeConnectionBoxMaster
PZFEB3204BB060÷4 barG1/4B10100
PZFEB3206BB060÷6 barG1/4B10100
PZFEB3210BB050÷10 barG1/4B10100
PZFEB3216BB070÷16 barG1/4B10100
PZFEB3225BB000÷25 barG1/4B10100
PZFEB3240BB000÷40 barG1/4B10100
