TB-ABS 63 ORT
×

TB-ABS 63/ORT

TB-ABS 63/ORT
Jump to section
Description Technical Features Part no. Downloads Case Studies Related products
Ask a question

Description

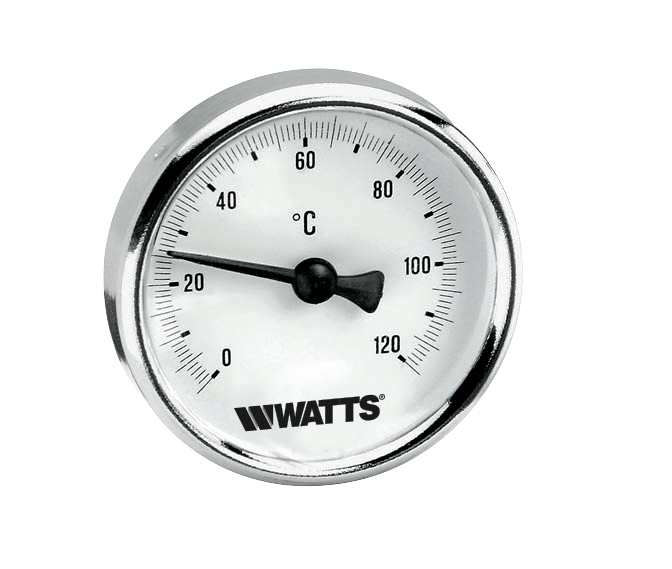

Bimetal Thermometers Series TB-ABS/ORT for domestic and industrial heating, gases and liquids not viscous, not aggressive and not crystallising. Polycarbonate case DN 63 back connection, with chrome-plated steel bezel ring. Measures range from 0-60°C up to 120°C/-30+50°C. Zinc-plated stem DN 9, lenght 50-100 mm. Complete with brass pocket with o-ring fixing. Temperature limits as per scale indication. Accuracy class 2.0. EN 13190.
Compliant with EN 13190.

Technical Features

Part no.

Part n.StemScale RangeConnectionBoxMaster
PT3098700150mm-30+50 °CG1/2B10100
PT3044701150mm0-60 °CG1/2B10100
PT3045700150mm0-80 °CG1/2B10100
PT3050706850mm0-120 °CG1/2B10100
PT31987004100mm-30+50 °CG1/2B660
PT31447003100mm0-60 °CG1/2B660
PT31457000100mm0-80 °CG1/2B660
PT31507012100mm0-120 °CG1/2B660
