Pump group FlowBox Cooling HK25-C
×
![]()
Pump group FlowBox Cooling HK25-C
Pump group FlowBox Cooling HK25-C
Description

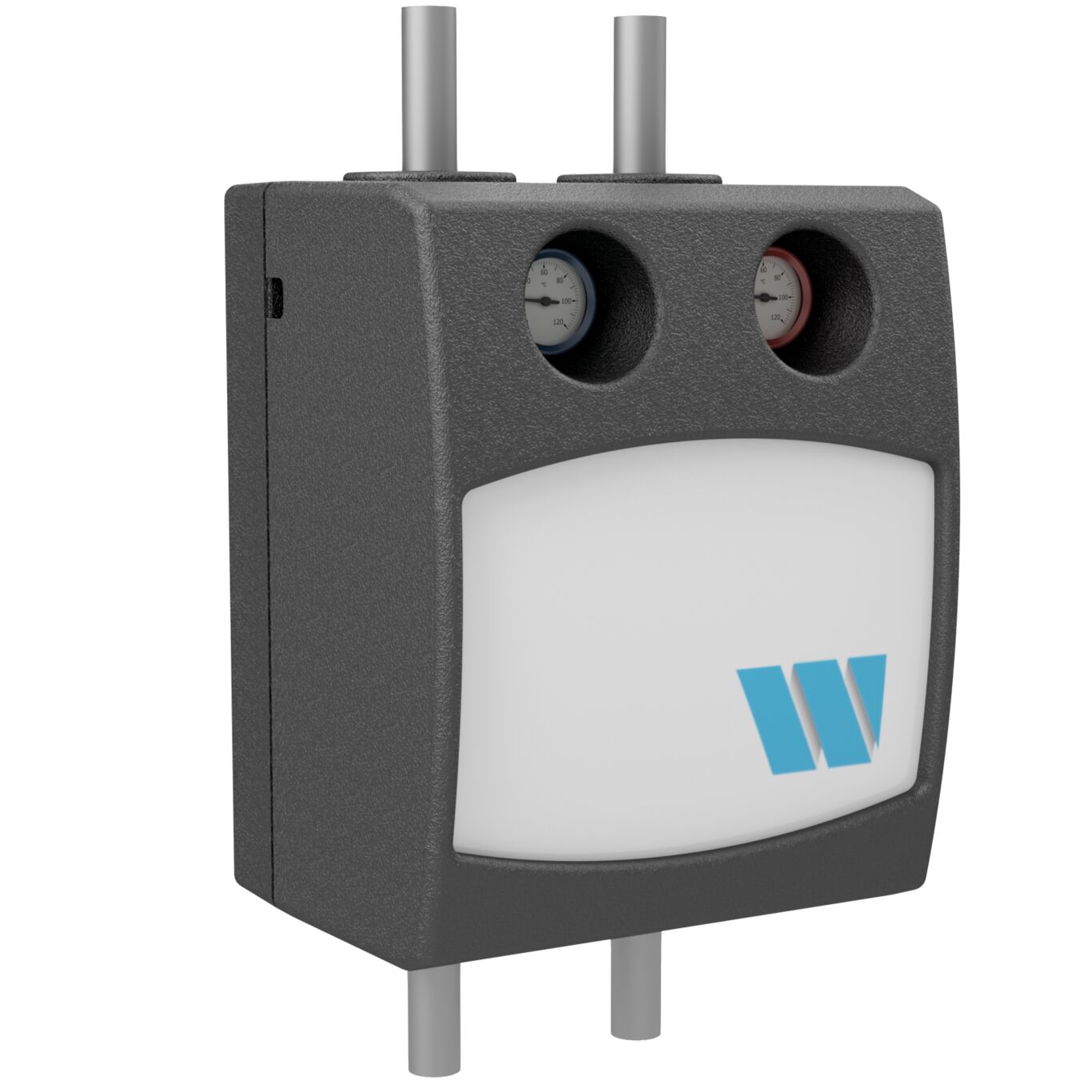

Pump group for unmixed cooling and heating circuits. GEG-compliant two-layer insulation consisting of an inner
diffusion-tight XPE cooling insulation shell and outer EPP thermal insulation shell. Simple installation with
with just one screw. Incl. wall bracket and fixing set. Centre distance 125 mm.

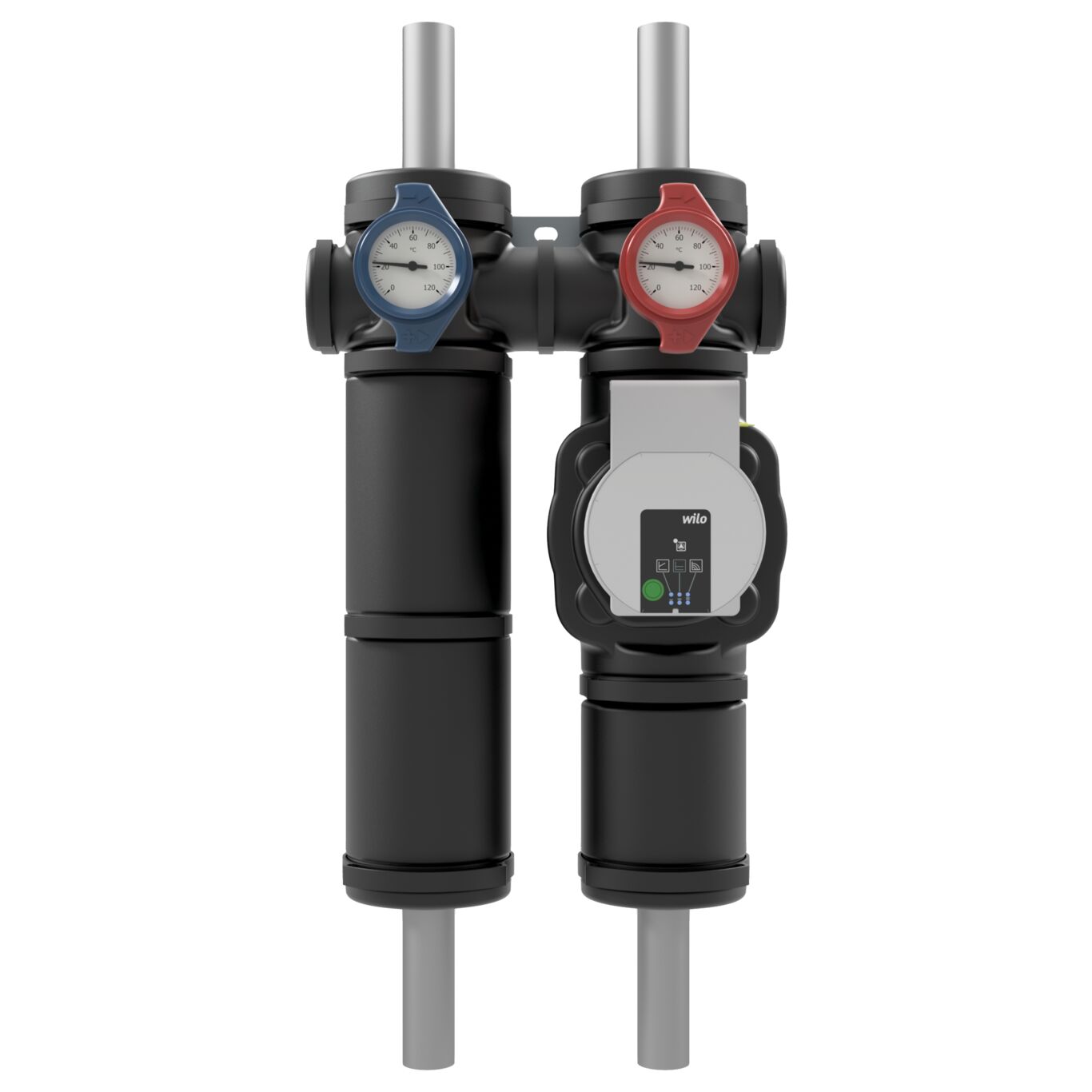

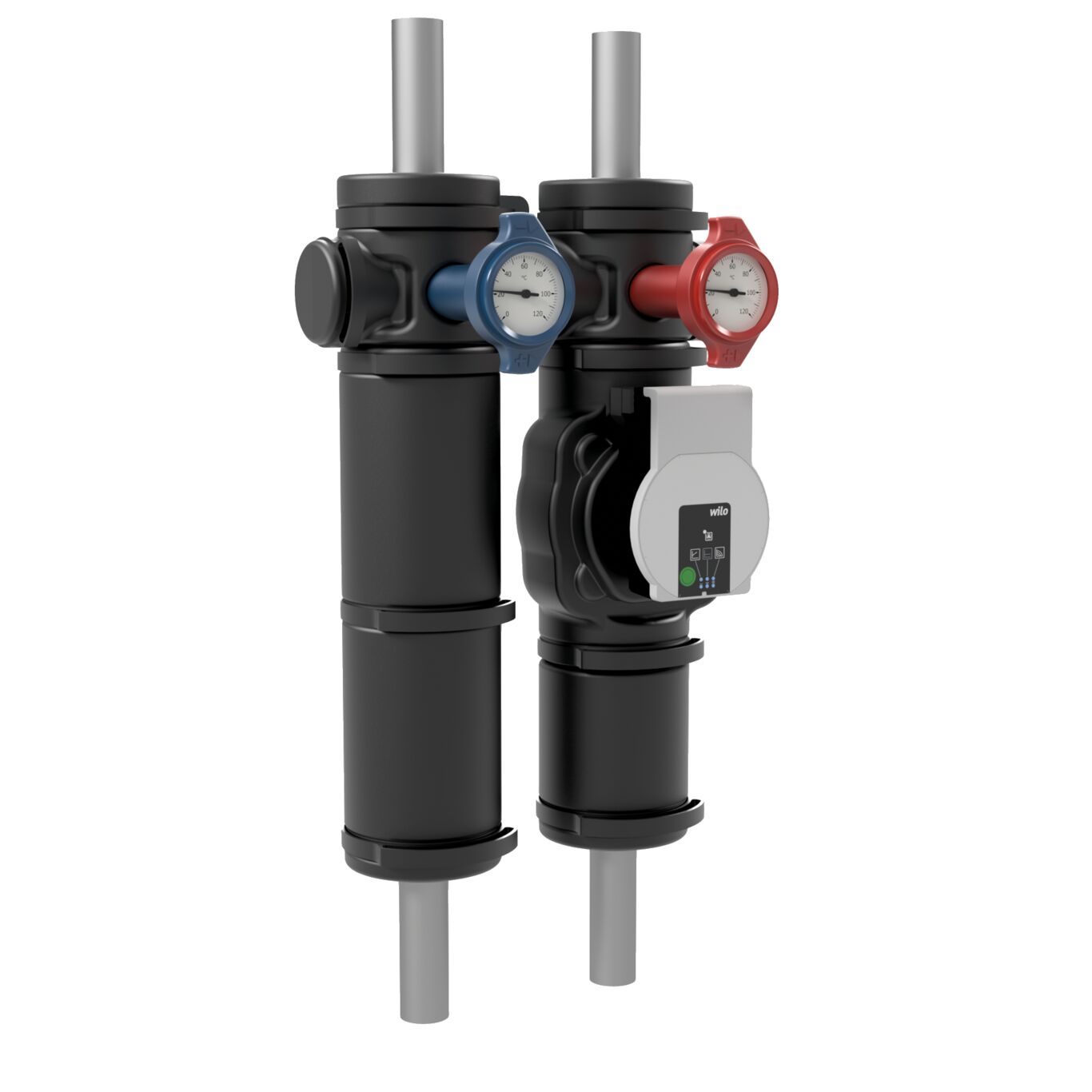

Heating/cooling flow: Multifunctional shut-off valve with gravity brake, thermometer 0 - 120 °C,
special circulation pump 180 mm for geothermal applications.
Heating/cooling return: Multifunctional shut-off valve, thermometer 0 - 120 °C.
- Nominal diameter: DN25
- Max. operating pressure: 6 bar
- Operating temperature: +8 - +80 °C
- G 1½ external thread, flat sealing without connection pipe.
Ø 28 mm connection pipe for press connection. - Centre distance: 125 mm
- Pump length: 180 mm
- Dimensions with insulation (W x H x D): 300 x 547 (370) x 240 mm
- Water or water-glycol mixtures according to VDI 2035/ÖNORM H 5195
- Outer thermal insulation shell: EPP (expanded polypropylene)
- Inner cold insulation shell: XPE (cross-linked polyethylene foam)
- Ball valves: brass body, spindle and union nut
Technical Features
Part no.
| Type | DN | Version | Part no. |
| HK25-C | 25 | Wilo Para G SC/7 | 10088551 |
