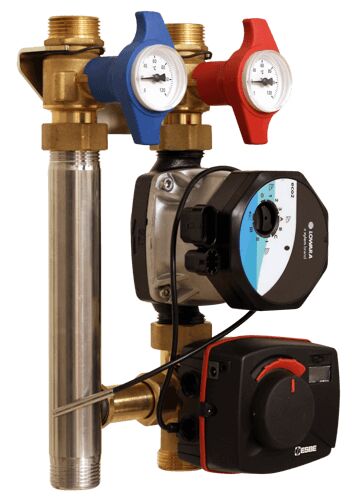

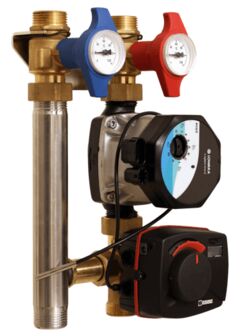

Pump group with mixing valve and electr. temperature control HKFC20
Description

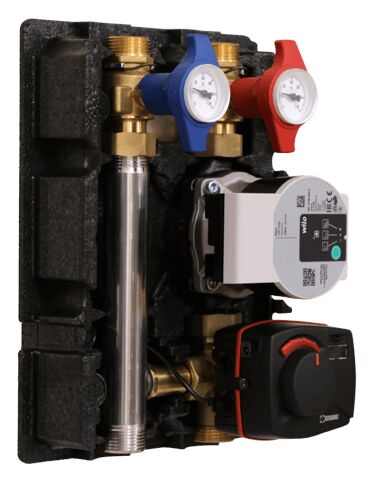

Compact pump and mixer group for mixed heating circuits with electrical fixed temperature control. Setting range: 5 - 95 °C1). 3-part patented EPP insulation shell provides a thermal insulation according to GEG (German Buildings Energy Act). Easy wall mounting with only one screw. Incl. wall bracket and fastening. 2 integrated temperature sensor connectors. Supply: shut-off valve with gravity brake and integrated thermometer 0-120 °C, circulation pump 130 mm, 3-way mixing valve, motor incl controller. Return: shut-off valve with integrated thermometer 0-120 °C. Return pipe made of stainless steel. The flow and return pipes of FlowBox HKFC20 are interchangeable from left to the right side. 1) Note the maximum operating temperature of the circulation pump!
Max. operating pressure: 6 barMax. operating temperature: +90° C
Setting range: 5-95 °C (Note the maximum operating temperature of the circulation pump!)
Recommended range of application at DT=20 K, Dp=100 mbar: max. 48 kW
All connections: 1"M with flat sealingsOverall pump length: 130 mmAxial distance: 90 mm
Height without insulation: 293 mmDimensions with insulation (W x H x D): 240 mm x 310 mm x 217 mm
Technical Features
Part no.
| Type | Kvs | Part no. WIDE | ||

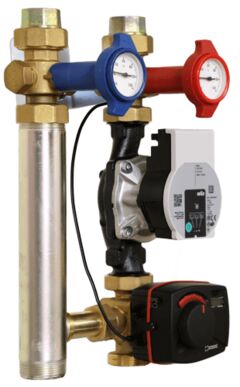

| HKFC20 6,3 | Wilo Para SC15/6 | 6,3 | 10084147 | |

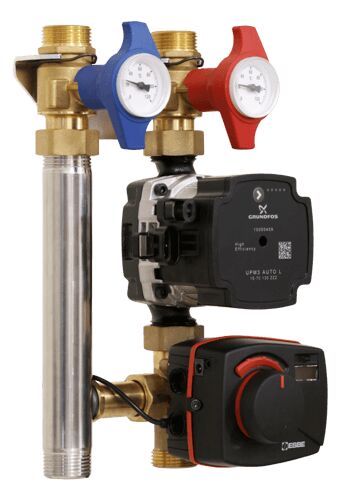

| HKFC20 6,3 | Grundfos UPM3A/7 | 6.3 | 10080553 | |
| HKFC20 6,3 | Eco2/8 | 6,3 | 10087352 | |
| HKFC20 6,3 | without pump | 6.3 | 10080552 | |
| HKFC20 6,3 | Wilo Yonos PARA 15/6 | 6.3 | 10080110 | discontinued |
