Pump group FlowBox HK25-KH and HK32-KH with additional shut-off valve
Description

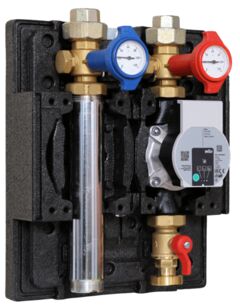

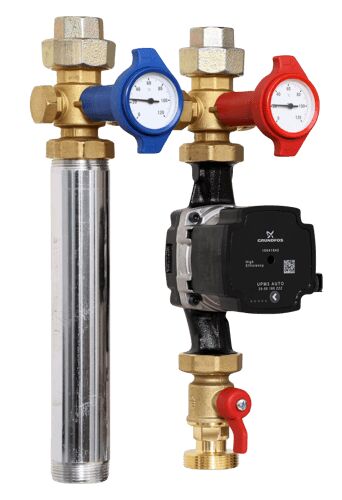

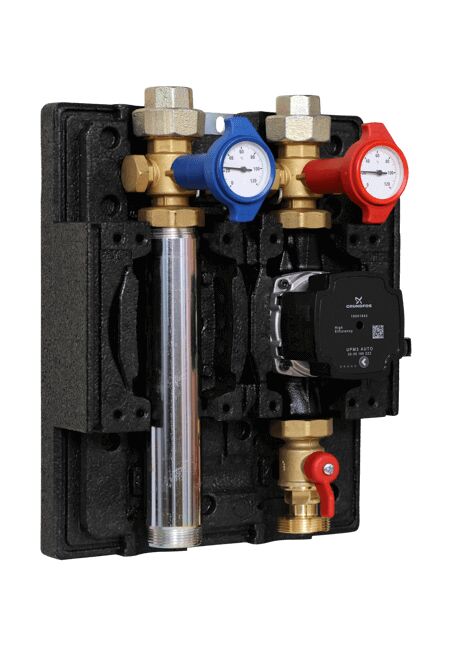

Compact pump group for direct heating circuits. 3-part patented EPP insulation shell provides a thermal insulation according to GEG (German Buildings Energy Act). Incl. wall bracket, fastening and 2 fittings for upper connection. Supply: shut-off valve with gravity brake and integrated thermometer 0-120 °C, circulation pump 180 mm, additional shut-off valve under the pump Return: shut-off valve with integrated thermometer 0-120 °C.
- Nominal size: DN25, DN32
- Max. operating pressure: 6 bar
- Operating temperature: +2 - +90° C
- Recommended range of application at DT=20 K, Dp=100 mbar:
- max. 46 kW (DN25)
- Overall pump length: 180 mm
- Axial distance: 125 mm
- Všetky pripojenia s tesnením
- Dimensions with insulation (W x H x D): 300 mm x 370 mm x 240 mm
Technical Features
Part no.
|
Typ |
DN |
Version |
Part no. |
|
HK25-KH |
25 |

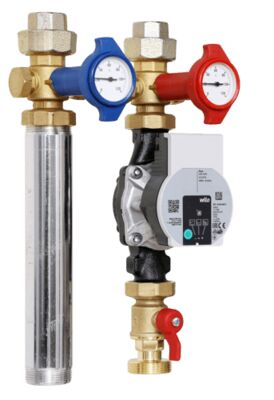

Wilo Para SC/6, with additional shut-off valve |
10084609 |
|
HK25-KH |
25 |
Grundfos UPM3A/7, with additional shut-off valve |
10084610 |
|
HK25-KH |
25 |
Lowara Eco2/8, with additional shut-off valve |
10087355 |
|
HK25-KH |
25 |
without pump, with additional shut-off valve |
10026635 |
|
HK32-KH |
32 |
Grundfos UPM3A/7, with additional shut-off valve |
10088411 |
