Description

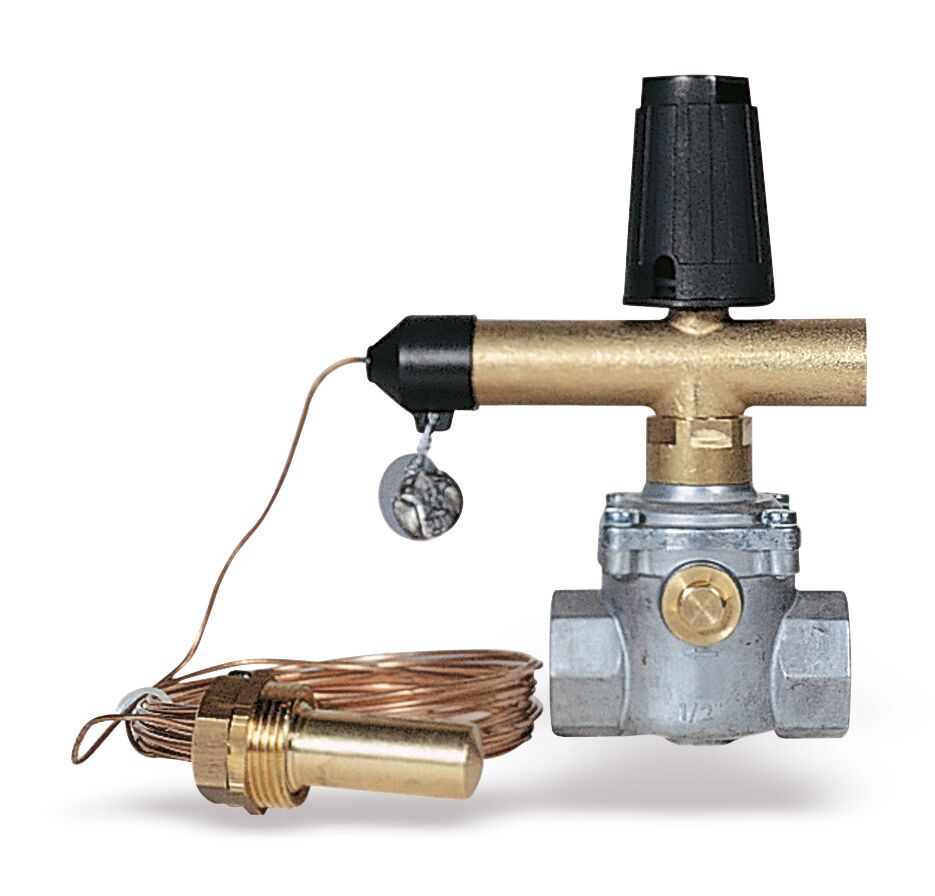

Liquid and gas fuel shut-off valve. DN 1/2” and 3/4” suitable for biodiesel. Positive action with manual resetting. Liquid expansion thermostat. Capillary length 5 m. (Vic100: 6m). Compact sensor. 1/2”M sensor sheath connection. Aluminium body, stainless steel springs. Max. operating pressure: 6 bar (Dn 15÷25) -1 bar (Dn 32÷100). Flange: DN 65 - 80 PN16 UNI 2223; DN 100 PN 16 EN 1092-4. Temperature: - setting 97°C±3°C - max. sensor side 120°C - max. valve side 50°C. INAIL (ex ISPESL) approved and set. Compliant with ATEX 2014/34/EU. Compliant with PED Directive 2014/34/EU Identification number CE0425.
Technical Features
Part no.
| Part Number | DN | Pmax (bar) | Q.ty/Box | Box/Carton |
| 0231415 | 1/2” FF | 6 | 1 | 1 |
| 0231420 | 3/4” FF | 6 | 1 | 1 |
| 0231425 | 1” FF | 1 | 1 | 1 |
| 0231432 | 1.1/4” FF | 1 | 1 | 1 |
| 0231440 | 1.1/2” FF | 1 | 1 | 1 |
| 0231450 | 2” FF | 1 | 1 | 1 |
| 0231465 | 65 | 1 | 1 | 1 |
| 0231480 | 80 | 1 | 1 | 1 |
| VIC100 | 100 | 1 | 1 | 1 |
