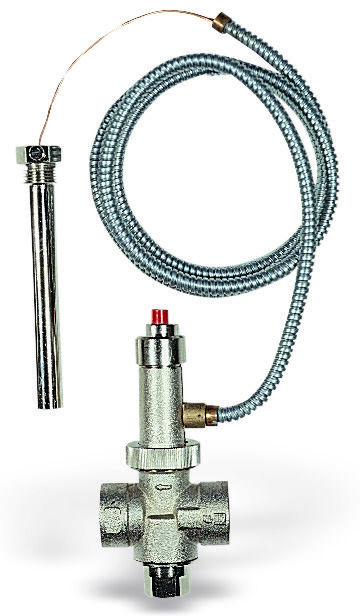

Thermal safety drain valve STS.R
×
![]()
Thermal safety drain valve STS.R
Thermal safety drain valve STS.R
Description
Thermal safety drain valve for non atomized, solid fuel boilers with double safety.
- Nickel-plated brass CW617N body.
- Immersion probe with 145 mm sheath and 1/2” M connection.
- Max. drain capacity: 6500 litres/h at 8 bar.
- Max. operating pressure: 10 bar.
- Set temperature : 97 °C. Max. drain capacity temperature: 107 °C.
Technical Features
Part no.
| Type | Part. no WII | Size | Cappilary |
| STSR | 0232520 | 3/4" | 1300 mm |
