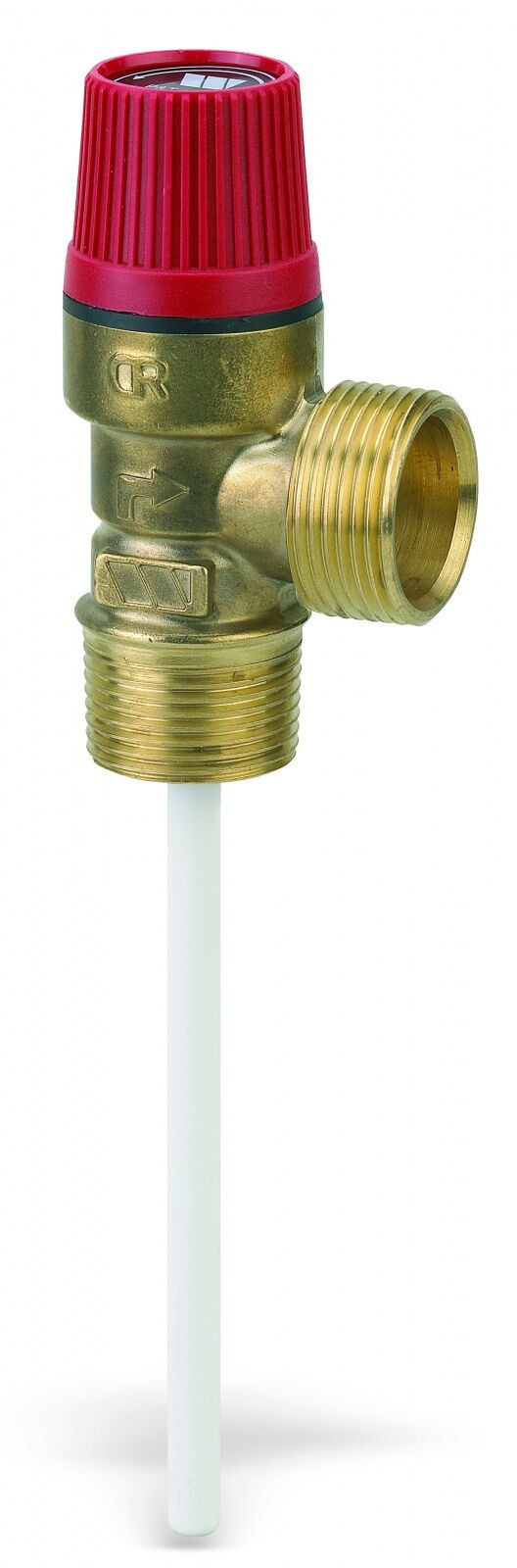

Combined safety valve PT-684
Description
Combined temperature, pressure and relief valve to protection tank build-up Nominal temperature 92 ± 3 °C Nominal pressure 10 bar Models with threaded male/female connections or male/fitting connection for copper pipes. Body: CW617N. Spring: stainless steel. Diaphragm EPDM; suitable for plumbing water. Designed for vertical and horizontal installation (only with bottom discharge).
Combined temperature, pressure and relief valve to protect tank build-up.
Models with threaded male/female connections or male/fitting connection for copper pipes.
Nominal temperature 92 ± 3 °C.
Nominal pressure 10 bar.
Body: CW617N.
Spring: stainless steel. Diaphragm EPDM; suitable for plumbing water.
Designed for vertical and horizontal installation (only with bottom discharge).
Accurate and proven probe, exclusively designed and manufactured by WATTS INDUSTRIES.
Conform to EN 1490 and WRAS.
According to Directive PED 97/23/CE.
Suitable for solar application.
Technical Features
Part no.
Type | Part no. WII | Part no. WID | Size | Bar |
PT-684 | 68403 | 10027171 | 1/2" х 1/2" | 7 |
PT-684 | 68404 | 10027334 | 1/2" х 1/2" | 10 |
PT-684 | 68450 | 10004625 | 3/4" х 3/4" | 3 |
PT-684 | 68451 | - | 3/4" х 3/4" | 4 |
PT-684 | 68452 | 10025984 | 3/4" х 3/4" | 6 |
PT-684 | 68453 | 10027172 | 3/4" х 3/4" | 7 |
PT-684 | 68455 | 10025985 | 3/4" х 3/4" | 10 |
