Description

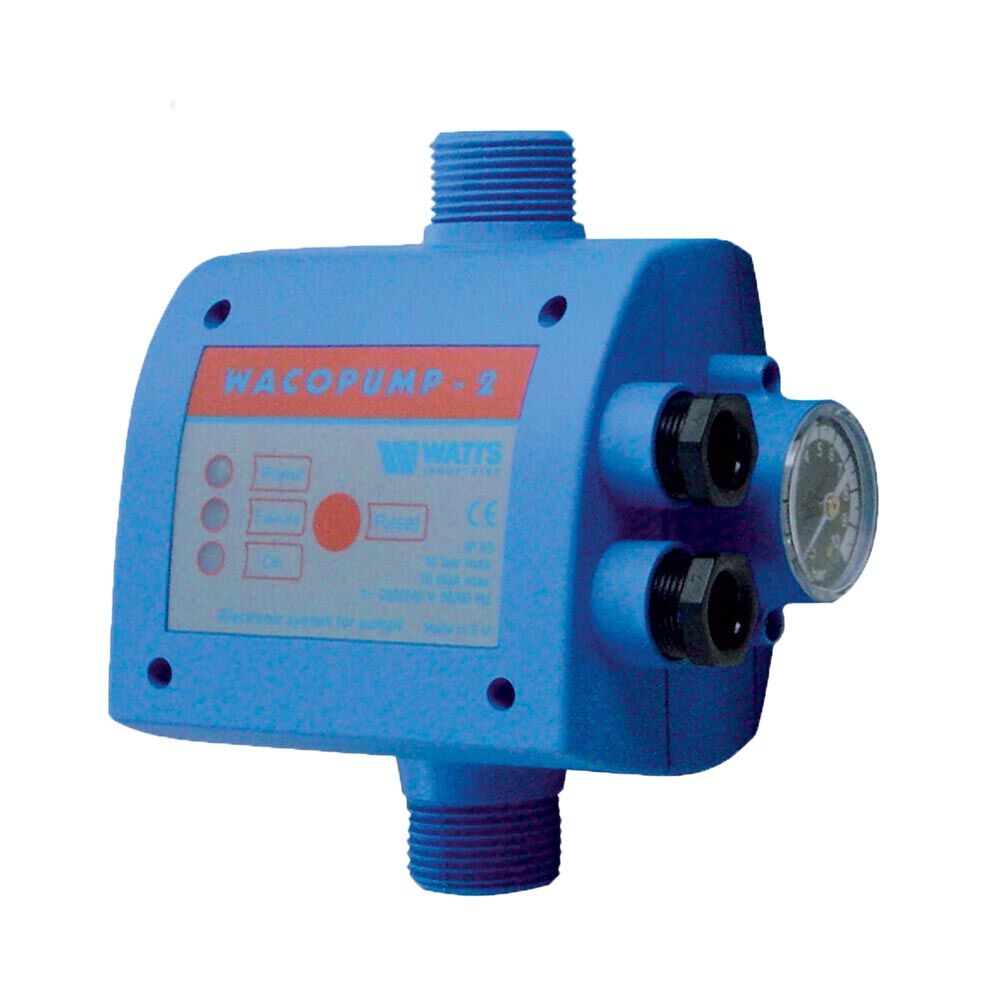

The electronic pump control unit controls start and stop of the pump when any tap or valve of the installation is opened or closed. When the pump is started, it remains running for as long as any connected tap remains open, thus supplying the water main with constant flow rate and pressure. It is provided with a special check valve (to protect against risk of water hammer) and pressure gauge with scale 0-10 bar.

  • Power supply: 220/240 Vac
  • Max. current drawn: 10 (6) A
  • Frequency: 50/60Hz
  • Protection degree: IP 65
  • Maximum water temperature: 60 °C
  • Maximum flow rate: 10,000 litres/h
  • Starting pressure: 1.5 to 2.5 bar
  • Maximum operating pressure: 10 bar
  • Maximum pump power rating: 1.5 HP (1100 W)

Technical Features

Part no.

 Type Part no.
 Power Supply
  Weight (g)
 WACOPUMP2 0605226   220/240 VAC   719
