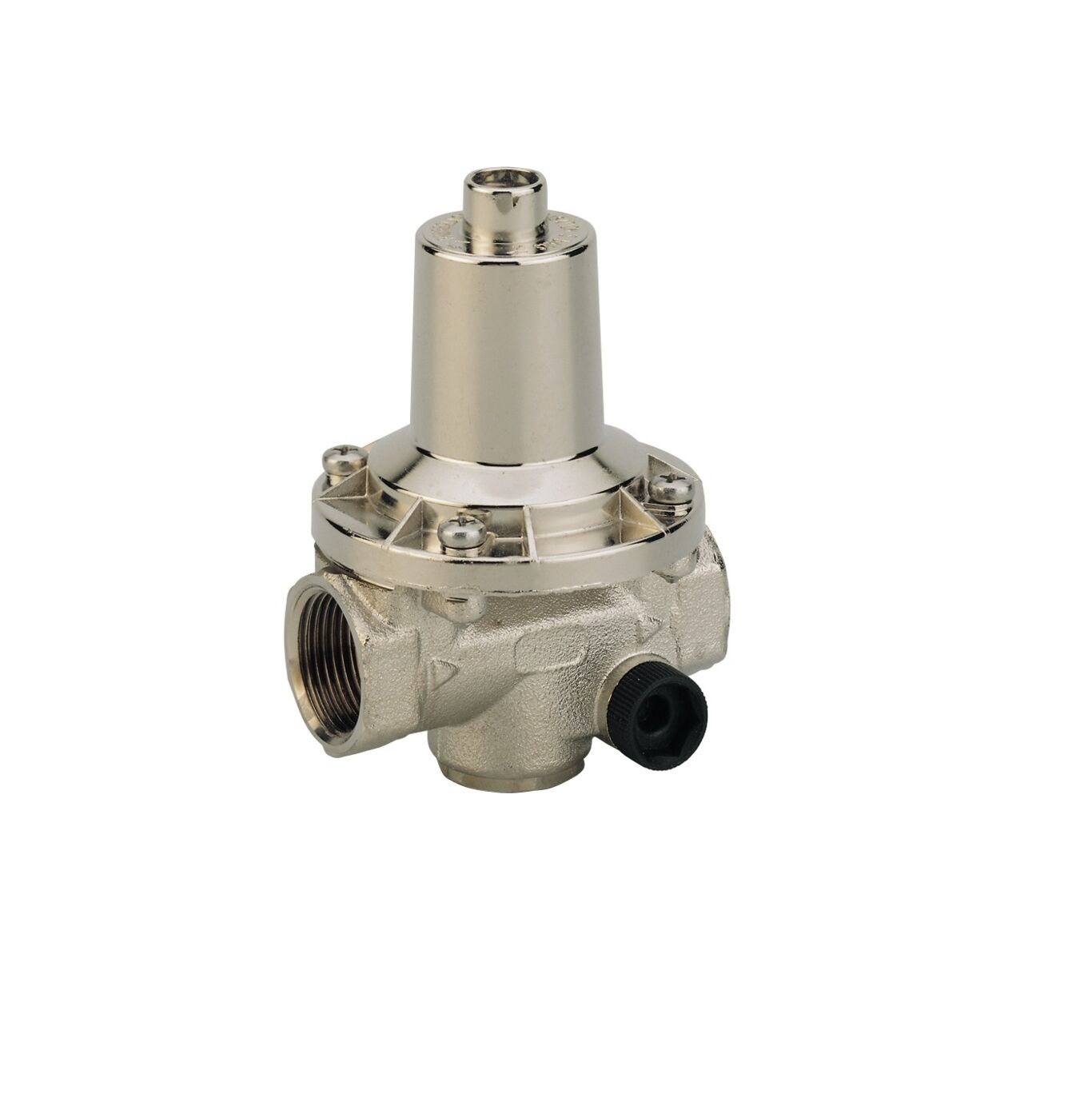

Pressure reducing valve RÉDUPRESS
×
![]()
Pressure reducing valve RÉDUPRESS
Pressure reducing valve RÉDUPRESS
Description
REDUPRESS is an ideal pressure reducing valve for domestic, commercial or industrial water systems without special requirements : individual supply for economic building sites ( flats, houses...). Low pressure models are special for any installation at low pressure requirement: irrigation, farms, laboratories...
Diaphragm and piston mechanism
Maximum upstream pressure : 16 bar
Maximum temperature : 80°
Adjustable downstream pressure from 1,5 to 5 ,5 bar for standard models and from 0,5 to 2,5 bar for low pressure models
Factory pre-adjusting: 3 bar
Two 1/4” pressure gauges
Body is in non-dezincificable brass (DZR), nickel plated finish
Maximum upstream pressure : 16 bar
Maximum temperature : 80°
Adjustable downstream pressure from 1,5 to 5 ,5 bar for standard models and from 0,5 to 2,5 bar for low pressure models
Factory pre-adjusting: 3 bar
Two 1/4” pressure gauges
Body is in non-dezincificable brass (DZR), nickel plated finish
Technical Features
Part no.
| DN | Presetting | Code WIF | Packing |
| F/F 1/2” | standard 3 bar | 2281100 | 20 |
| F/F 1/2” | low pressure 1,5 bar | 2281106 | 10 |
| F/F 3/4” | standard 3 bar | 2281116 | 20 |
| F/F 3/4” | low pressure 1,5 bar | 2281113 | 10 |
| M/M 3/4” | standard 3 bar | 2281015 | 16 |
| F/F 1/2” with pressure gauge | standard 3 bar | 2281101 | 16 |
| F/F 3/4” with pressure gauge | standard 3 bar | 2281117 | 16 |
