Watts Vision® system Сentral unit BT-CT03-RF
×
![]()
Watts Vision® system Сentral unit BT-CT03-RF
Watts Vision® system Сentral unit BT-CT03-RF
Description
The central unit is equipped with a colour capacitive touch screen of 4.3” in a choice of languages, and can control up to 50 Zones.
For app compatibility, check the WELF code (P-number) on the label on the rear of the central unit.
Maximum number of connectable devices
- Max. 50 rooms/zones heating / cooling master devices (thermostats) and 50 heating/ cooling slave devices (receivers)
- 25 ON/ OFF devices with weekly program with 15 min steps
- 25 lighting devices (ON/ OFF)
- 25 leak sensors
- To extend the RF range, a Watts RF repeater may be required.
- Individual time programming for each room.
- Bidirectional communication.
- RF frequency 868MHz.
- External access via Internet, WiFi integrted in the touch central.
- Power Supply 230V/50Hz or USB (cable optional).
- Micro SD card slot for software update.
Technical Features
Part no.
| Type | Code WELF | Compatibility | Description |

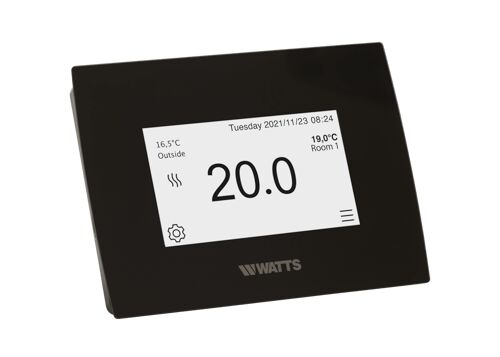

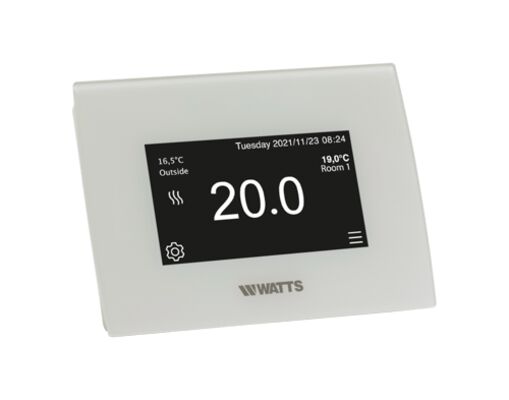

| BT-CT03 WHITE | P08630/11 | VISION APP | with integrated WIFI |
| BT-CT03 BLACK | P08702/12 | VISION APP | with integrated WIFI |
| BT-CT03 WHITE | P08630/12 | new VISION+ APP | with integrated WIFI |
| BT-CT03 BLACK | P08702/13 | new VISION+ APP | with integrated WIFI |
