Controller CLIMATIC CONTROL for heating and cooling systems (phased out)
This product is no longer available
Description

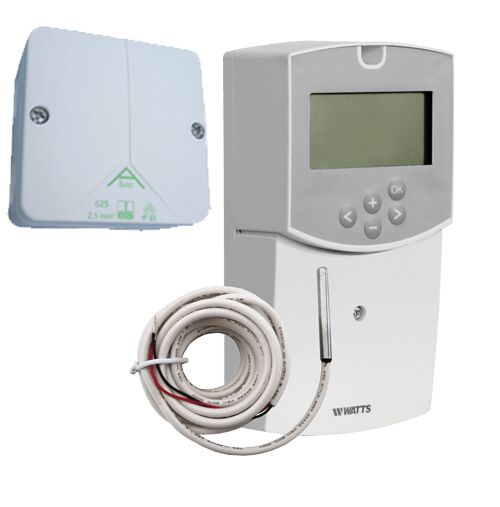

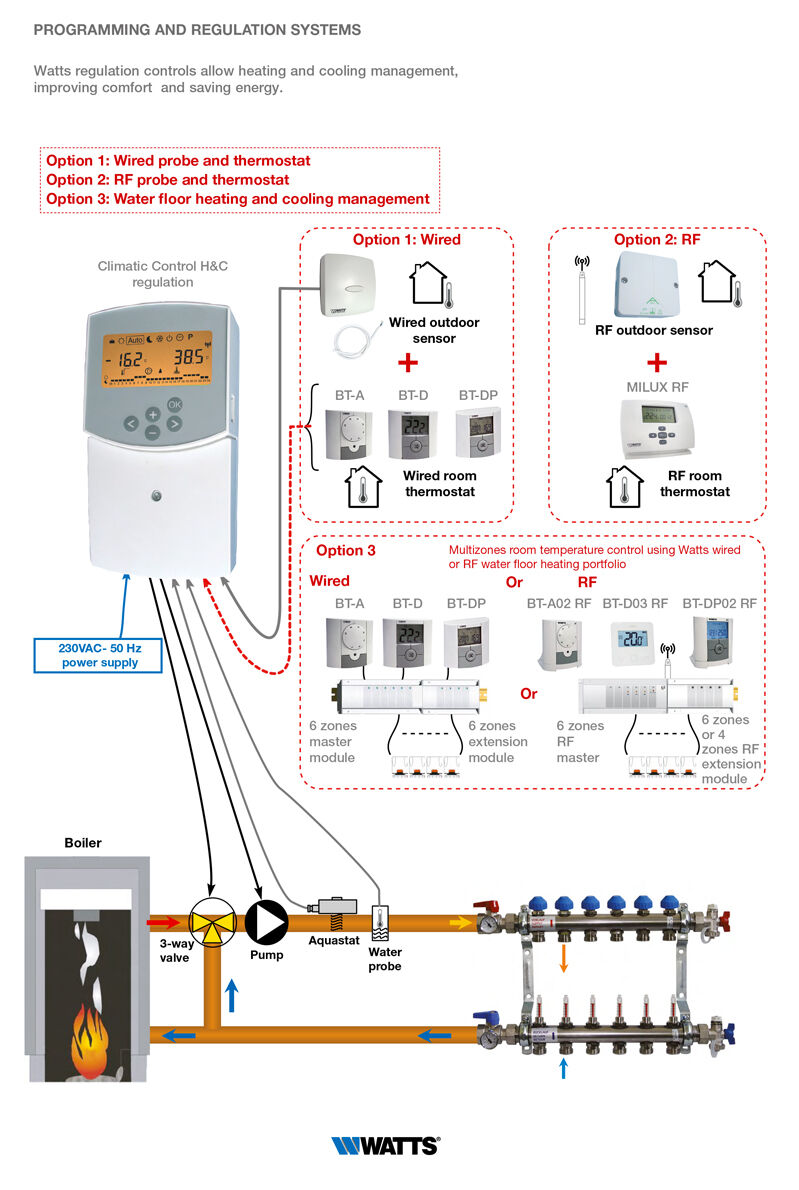

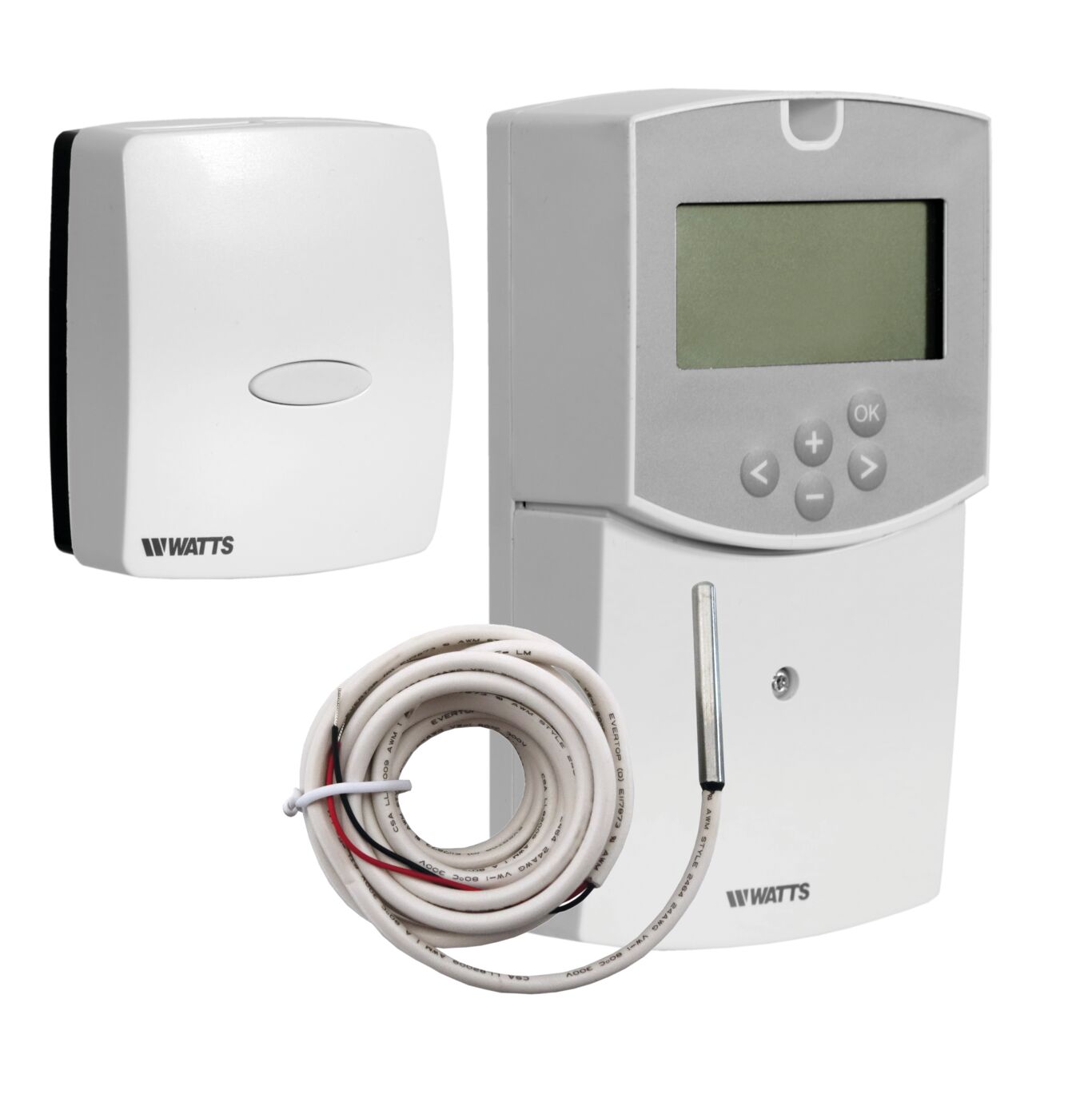

Digital climatic controller for heating only and heating/cooling systems with outdoor air temperature compensation. Recommended for flow temperature control with mixing valve with 230 VAC 3-point actuator. Weekly programming, 9 pre-set programmes and 4 custom programmes, controlled on basis of outdoor temperature, outdoor temperature and water temperature display, maximum and minimum temperature limit, pump control, possible to connect a room thermostat. Predisposed for the installation of an antenna for use with RF (antenna not included). Ideal for controlling radiant panel heating/cooling systems. Kit includes: - climatic control unit; - outdoor temperature probe with 2 m cable NTC 10 KΩ; - flow water temperature probe NTC 10 KΩ (1/8” M straight); Option for WSENS return water temperature probe.
Technical Features
Part no.
| Type | Code WELF | Description | Power Supply |
| CC-HC | P04013 | Heating & Cooling | 230 VAC |
| CC-HC | P04987 | with sensor 10K | 230 VAC |
| CC-HC | P06230 | with sensor 10K, antenna 433MHz and RF outdoor sensor | 230 VAC |
