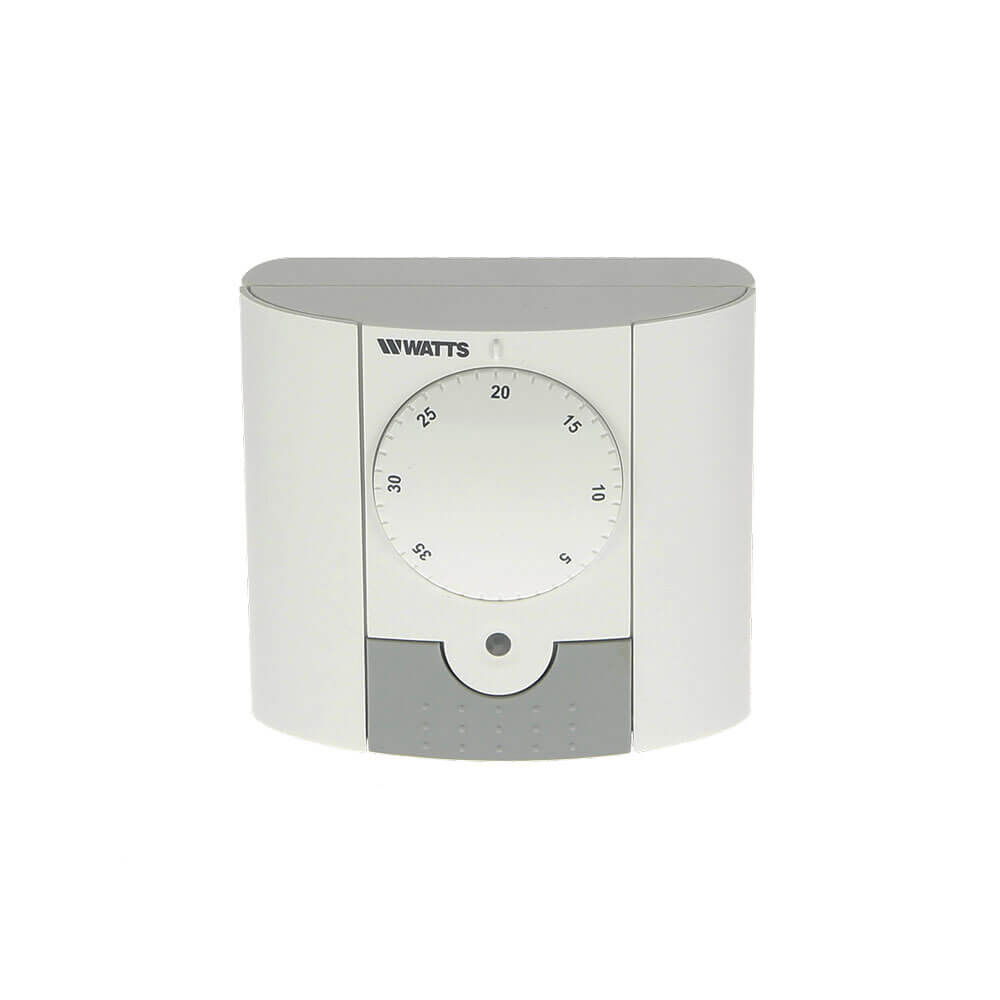

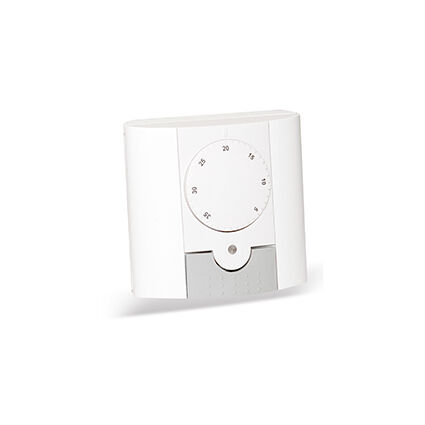

Room thermostat BT-A
×
![]()
Room thermostat BT-A
Room thermostat BT-A
Description
Electronic analogical room thermostat specially designed to control different type of heating systems. Can be connected directly to electrothermal NC actuators Series 22CX, 26LC or through modules WFHC. WORKING MODE: NORMAL. Temperature setting range: 5 - 35 °C. Temperature differential 0.5 K. Regulation on the integrated temperature sensor: NTC. Option: possibility to regulate on external sensor. Protection IP30.
- Temperature setting range: 5 - 35 °C
- Temperature differential 0.5 K
- Regulation on the integrated temperature sensor: NTC
- Protection IP30
- Power load: BT-A (Relais 3 A, 250 VAC),
- BT-A230 V (Triac 75 W, 230 VAC),
Technical Features
Part no.
| Type | Part no. WEL | Part no. WID | Power supply |
| BT-A | P05609 | 10025810 | 2 batteries 1,5 V |
| BT-A 230V | P06915 | 230 VAC |
